Experience unprecedented performance, visuals, and efficiency with Sapphire PULSE AMD Radeon RX 7700 XT graphics cards, the world’s first gaming GPUs powered by AMD RDNA 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint colour accuracy of AMD Radiance Display Engine and boost frame rates with AMD FidelityFX Super Resolution and Radeon Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon RX 7000 Series graphics and compatible AMD Ryzen processors to activate AMD smart technologies.
Specifications
- Base Clock: 1700MHz
- Boost Clock: 2544MHz
- Memory: 12GB 18000MHz GDDR6
- Stream Processors: 3456
- Power Consumption: 230W
- Recommended PSU: 700W
- Form Factor: 2.5 Slots
- Dimensions: 280 x 128.75 x 52.57 mm
- AMD RDNA 3 Architecture
- 48MB AMD Infinity Cache Technology
- DisplayPort 2.1 Support
- AMD FidelityFX Super Resolution technology
- 54 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
- PCI Express 4.0 ready
- Microsoft DirectStorage Support
1700MHz
Base Clock
2544MHz
Boost Clock
12GB
GDDR6 Memory
3456
Stream Processors

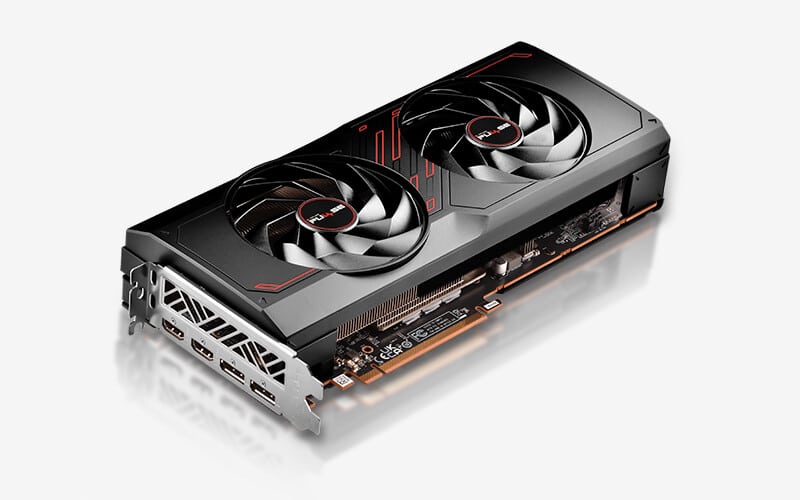

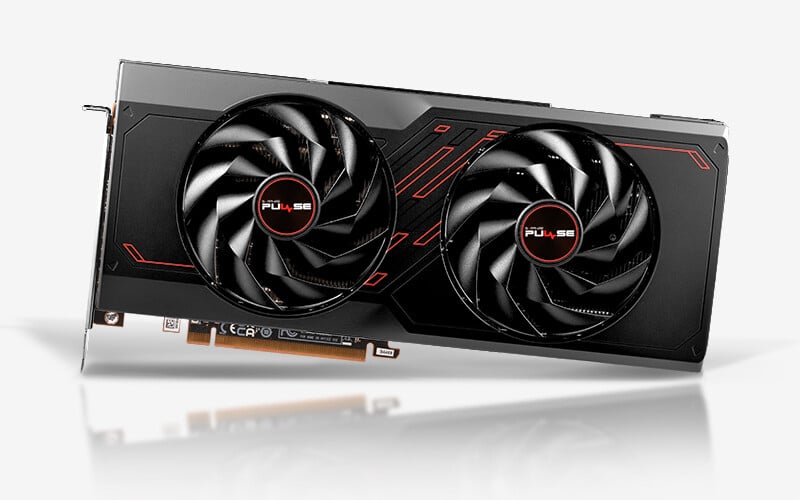

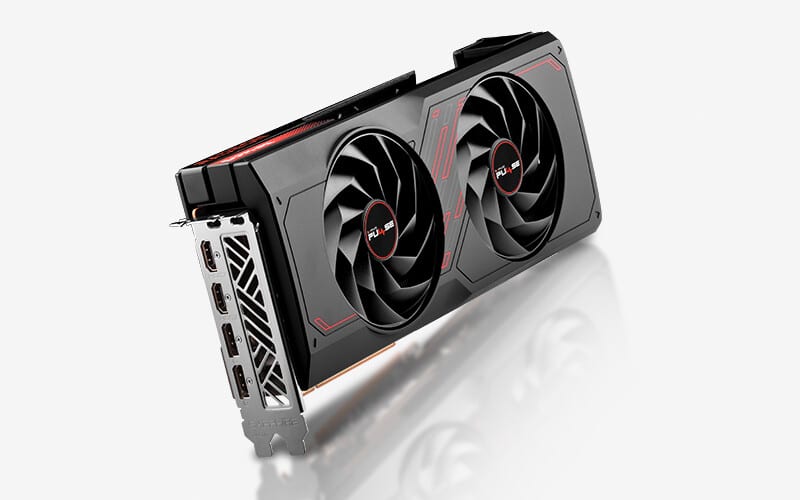

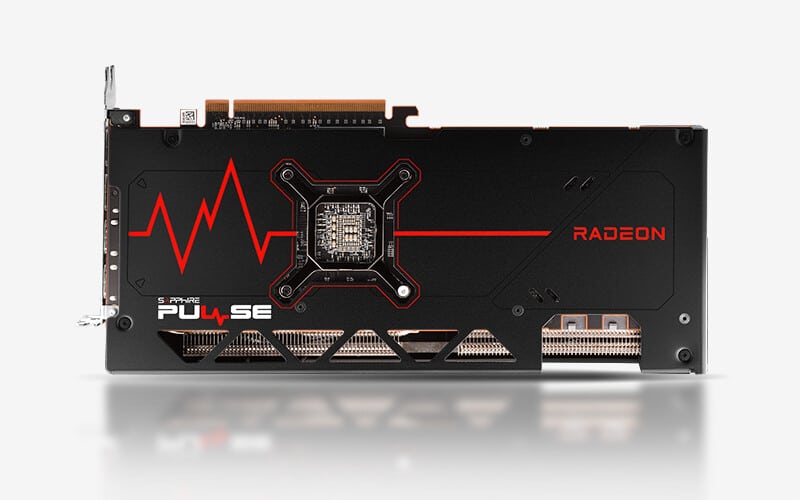

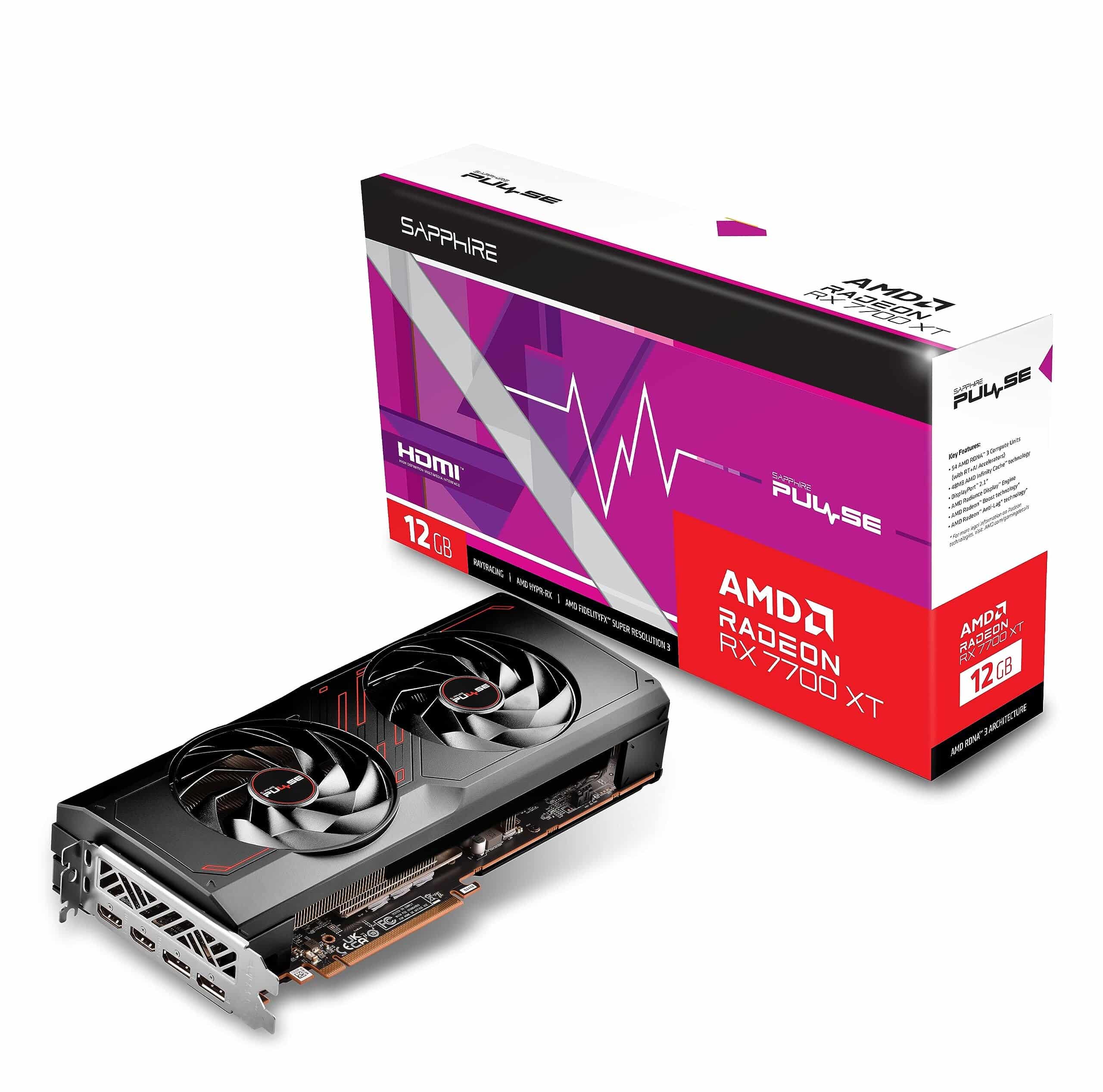

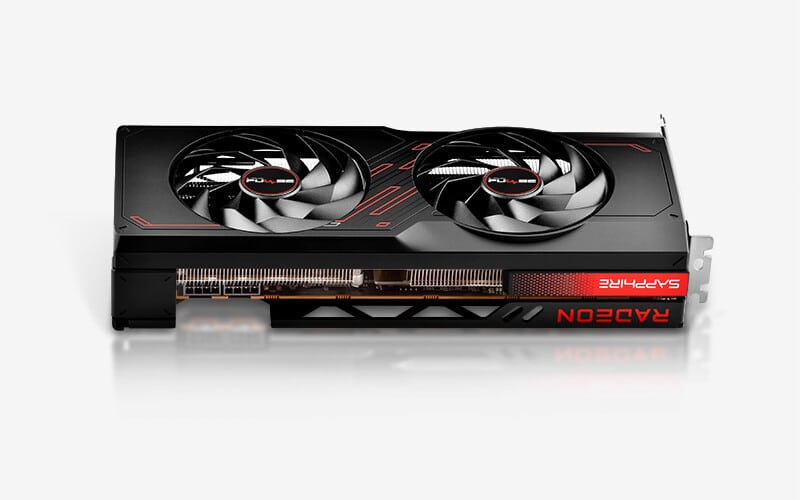

About the Sapphire PULSE AMD Radeon RX 7700 XT Graphics Card
Digital Power Design
Sapphire PULSE AMD Radeon RX 7700 XT graphics cards are designed with digital power which provides accurate power control and excellent power efficiency.

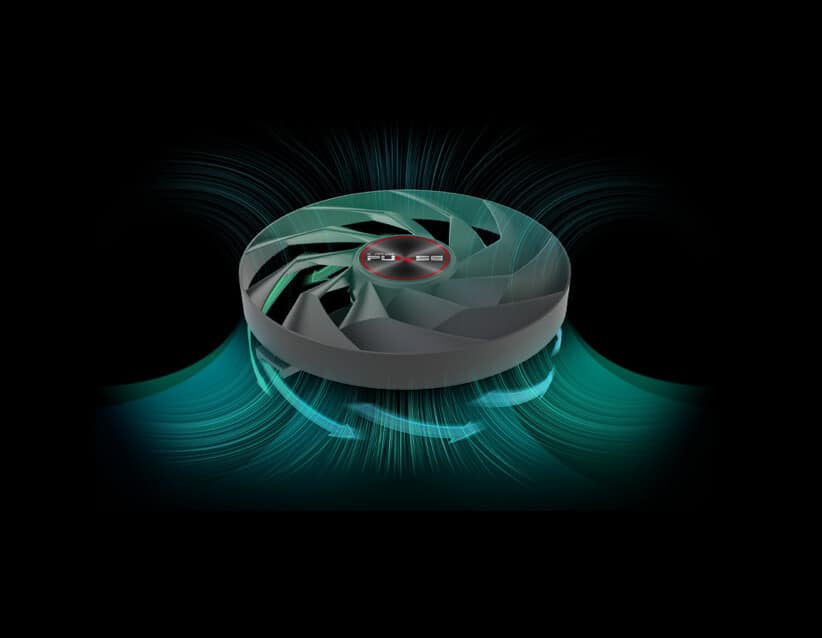

Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimised Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Fuse Protection
In order to protect your card, the Sapphire PULSE AMD Radeon RX 7700 XT cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Stability and Reliability
The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the Sapphire PULSE AMD Radeon RX 7700 XT graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.
