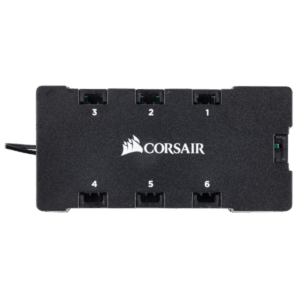

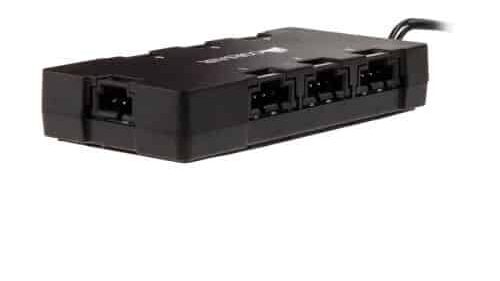

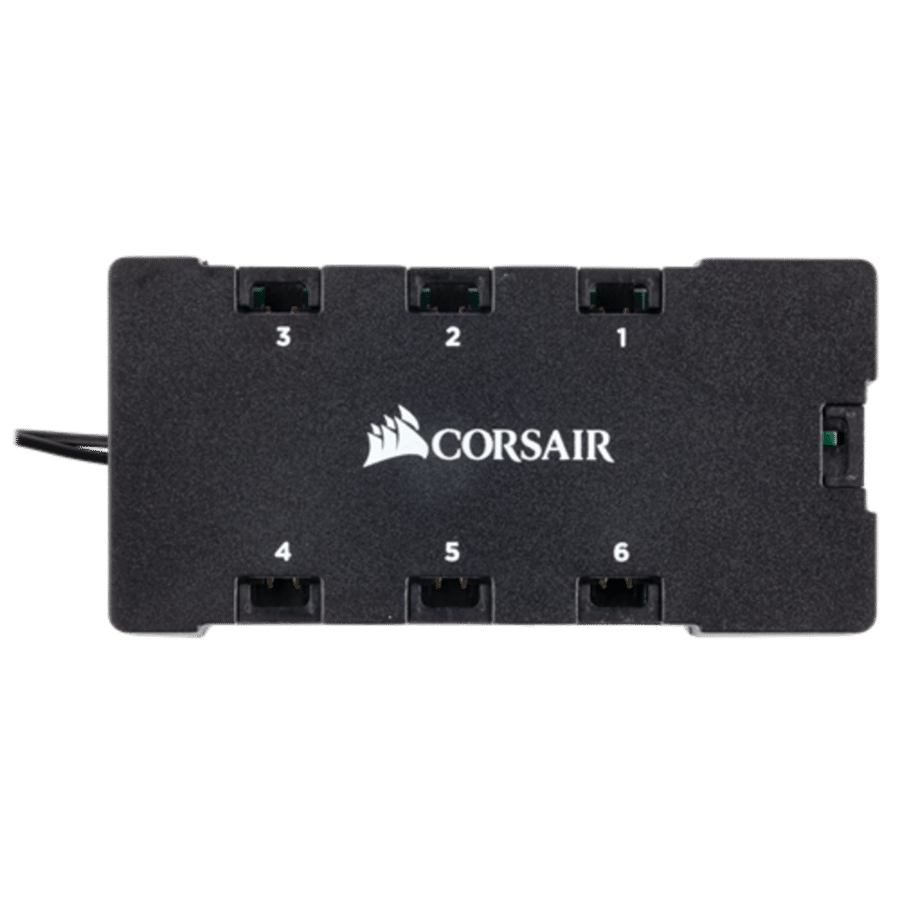

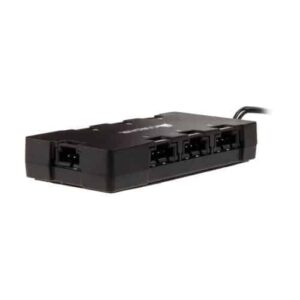

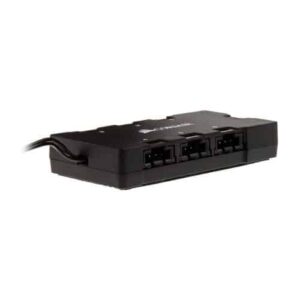

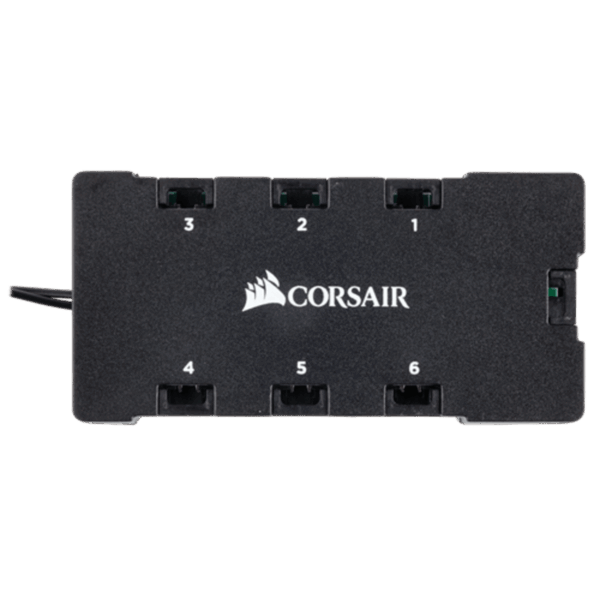

The Corsair RGB Fan LED Hub is, as the name implies, specialised in the control of the RGB illumination of the fans of the manufacturer Corsair. In each case one of a total of six 4-pin connections can be plugged in, for example, the fans from Corsair’s HD, LL, ML or SP-RGB series. The hub and the RGB LEDs are powered by an integrated SATA connector.
Note: Remote control and cables for connecting to the Corsair Commander Pro RGB LED Controller or to the JCORSAIR header of a motherboard are not included with the package.
Features
- Connection(s): 6 x 4-pin (for fans), 1 x SATA (for power connection), 1 x 3-pin (for controller / remote control / JCORSAIR header)
- Compatibility: Corsair Commander Pro RGB LED, HD fan series from Corsair, LL fan series from Corsair, ML fan series from Corsair, Corsairs SP-RGB fan series
About the CORSAIR RGB Fan LED Hub
Connect. Command. Control.
A 3-pin slot on the opposite side connects the hub to Corsair’s Commander Pro RGB LED Controller (LULS-271). Alternatively, the optional wired remote control for Corsair’s RGB fans can be connected to the slot or the Corsair RGB Fan Hub can be connected to one via an optional cable JCORSAIR header of an appropriately equipped motherboard. On the back is an M3 strip that allows the hub to be attached anywhere.
