The Arctic P12 Slim PWM PST is a great choice for anyone looking for a slim, powerful, and quiet case fan that can fit in tight spaces and provide optimal cooling performance. With its slim design and advanced features, this fan offers superior performance and reliability.
Specifications
- Fan Connector(s): 4-pin

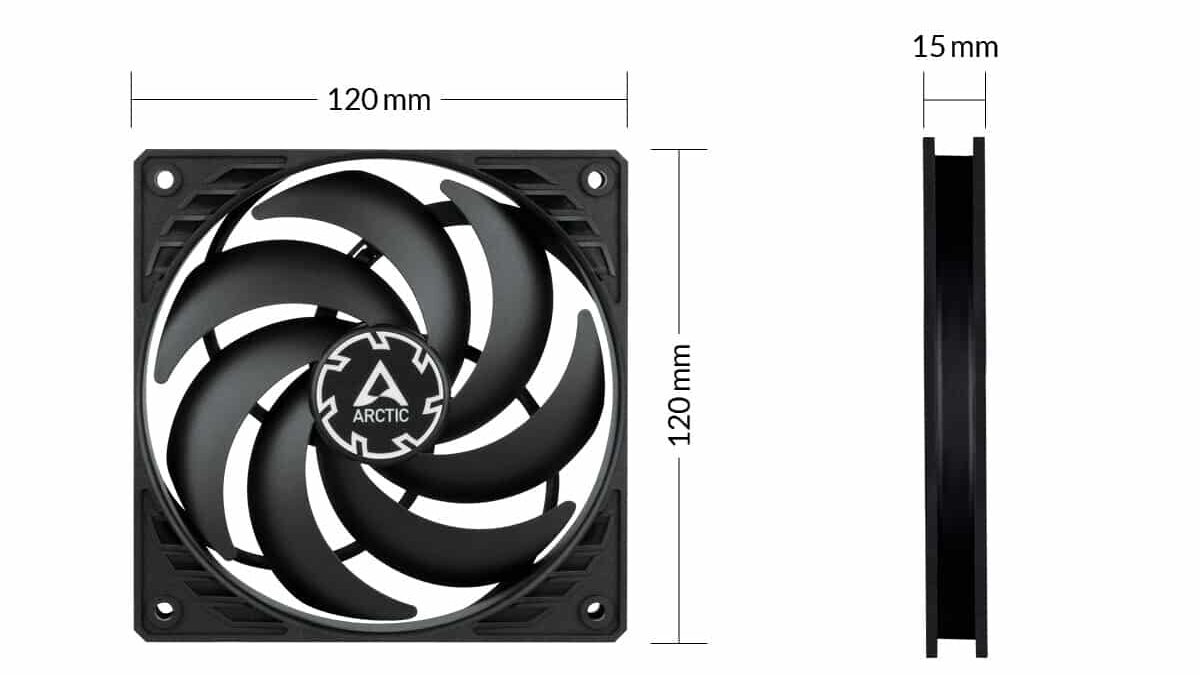

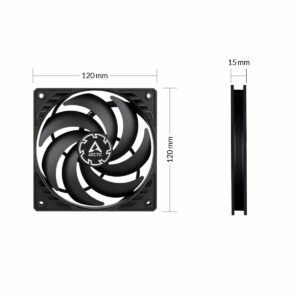

- Fan Dimensions: 120 x 15 mm
- Fan Controller: PWM PST
- Rotation Speed: 300 – 2100 RPM
- Fan Bearing: Fluid Dynamic Bearing
- Air Flow: 42.1 CFM
- Noise level: 0.3 Sone
- Power: Fan: 12V
- Power Draw: Fan: 0.12A

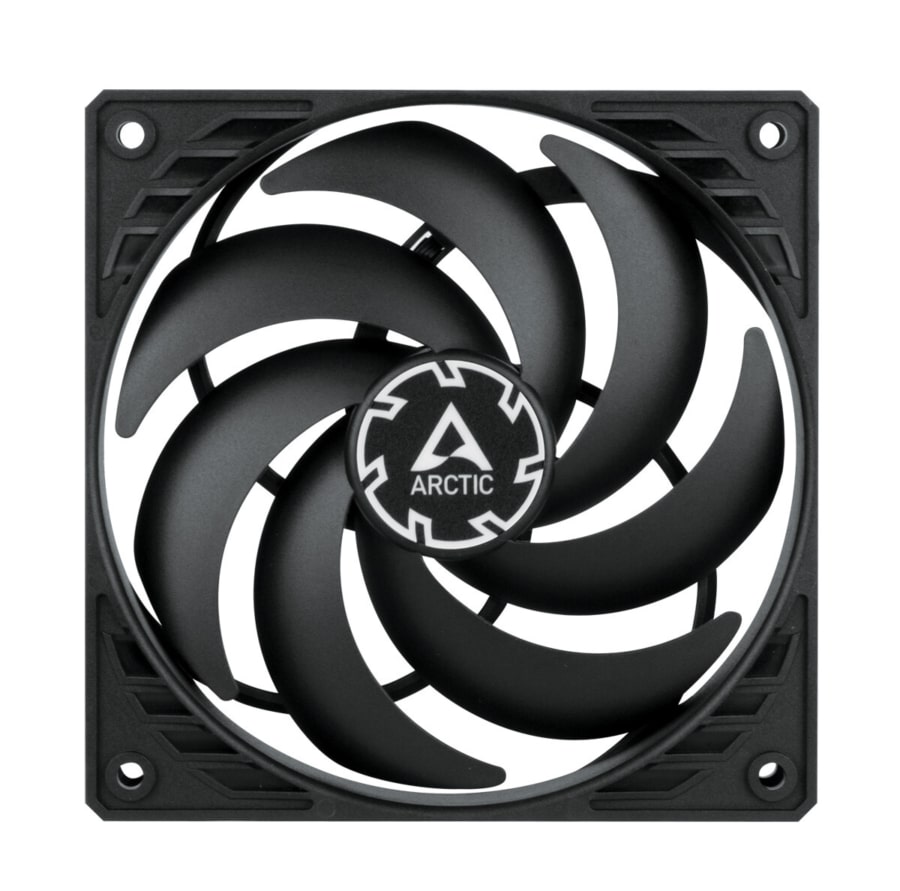

About the Arctic P12 Slim PWM PST 120mm Black Case Fan
Ideal for Small Spaces

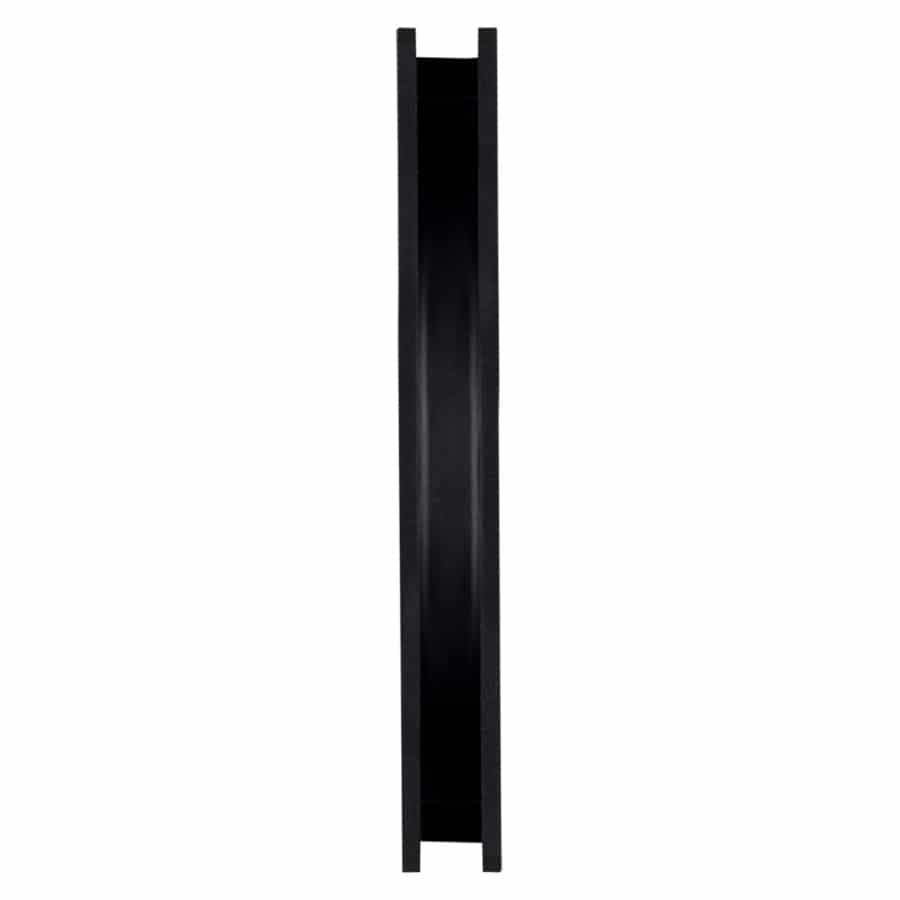

Unlike standard 120 mm case fans with a thickness of 25 mm, the Arctic P12 Slim PWM PST has a mounting depth of only 15 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.
Optimised for High Static Pressure
Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
Maximum Quietness
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
0dB Mode – Zero RPM
The speed of the Arctic P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
High Quality Sleeve Bearing
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
Versatile Use
The Arctic P12 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
