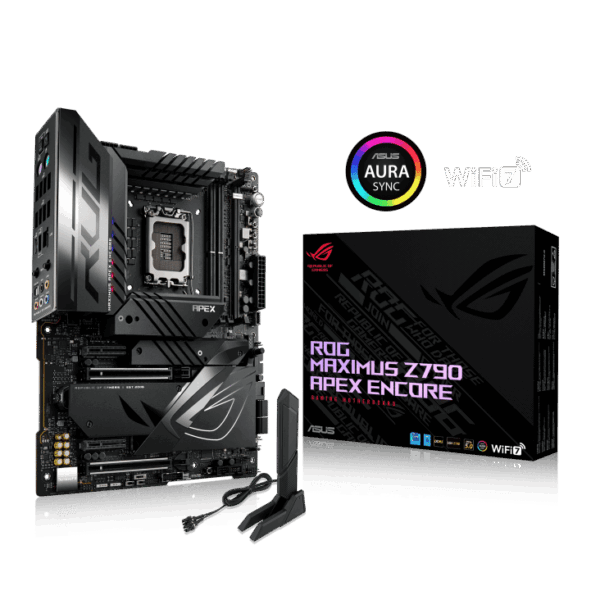

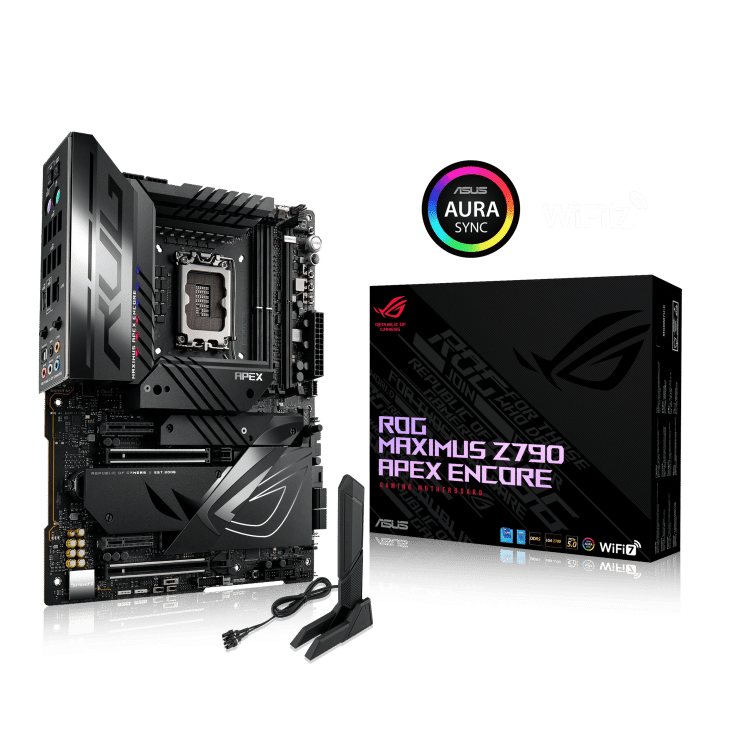

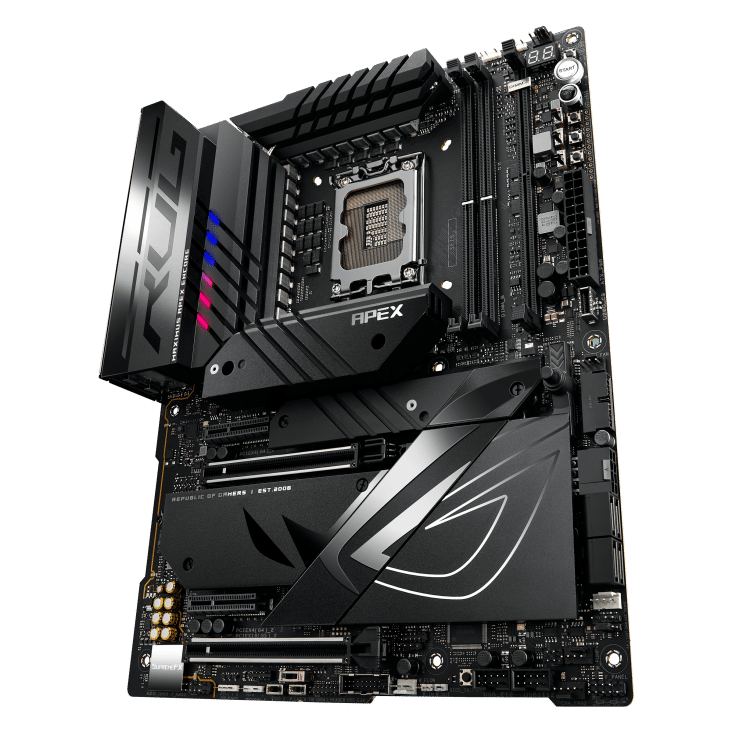

The ASUS ROG Maximus Z790 Apex Encore boasts a sleek all-black design, robust appearance, upgraded power solution and an onboard PCIe 5.0 M.2 slot for lightning-fast storage. Meanwhile, the ROG Memory Fan Kit offers active cooling to let tinkerers push DDR5 to the limit. And support for Intel Core 14th generation processors lets users set new benchmarks for the wealth of activities that demand peak performance. This motherboard is the ultimate choice for enthusiasts and overclockers seeking style and power in their gaming setup.
Specifications
- Chipset: Intel Z790
- CPU Socket: LGA1700
- Supported CPU: Intel Core 12th, 13th & 14th Gen
- Memory Slots: 2
- PCIe Gen 5 X16 Slots: 2
- Form Factor: ATX
- AI Overclocking
- AI Cooling II
- PCIe 5.0 M.2
- WIFI 7
- 24 + 0 + 2 Teamed Power Solution
- 2.5Gb Ethernet
Intel Z790
Chipset
LGA1700
Socket
Gen 5.0
PCIe
ATX
Form Factor
About the ASUS ROG Maximus Z790 Apex Encore Motherboard
Teamed Power Architecture
Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
DDR5 Domination

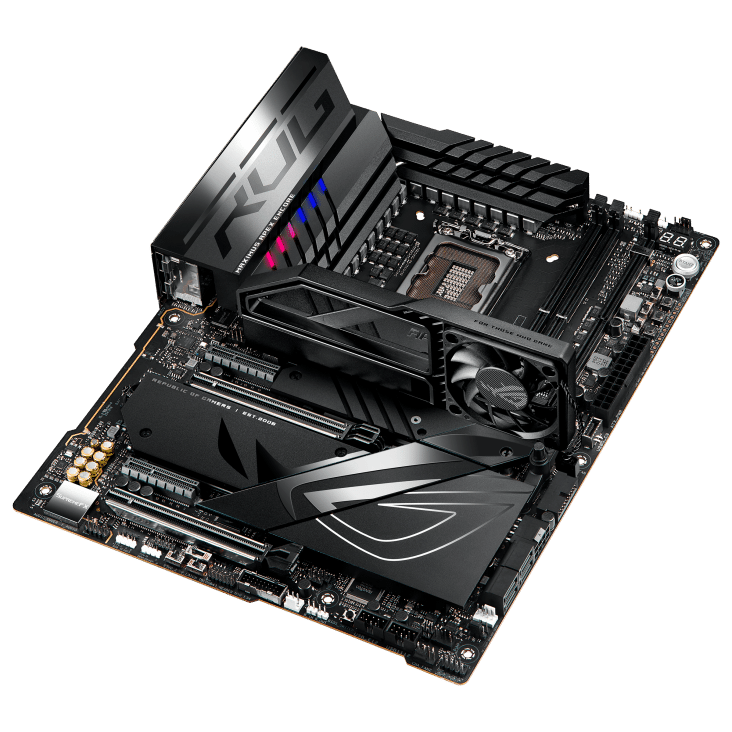

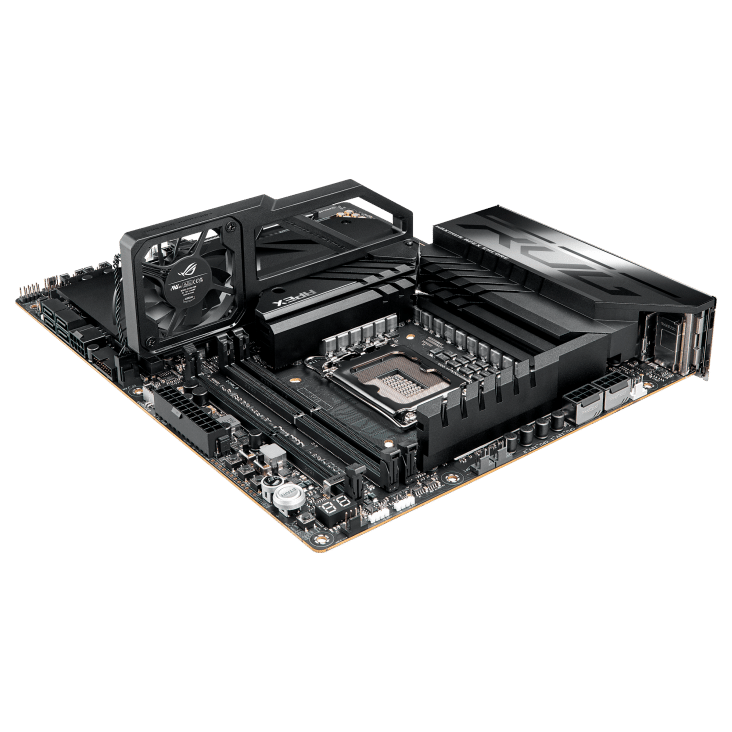

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven as far as 8 GT/s on the ASUS ROG Maximus Z790 Apex Encore, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI. The ASUS ROG Maximus Z790 Apex Encore is also equipped with the ROG Memory Fan Kit – a cooling solution to solidify DDR5 stability and unleash memory overclocking.
PCIE 5.0
Fully embracing the new standard, the ASUS ROG Maximus Z790 Apex Encore offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available. Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the PCIe Slot Q-Release button.
Three Onboard M.2 Slots
The ASUS ROG Maximus Z790 Apex Encore features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speeds, while the others offer still-impressive 8 GB/s over PCIe 4.0 interfaces.
M.2 heatsinks
Three onboard M.2 slots are thoroughly cooled with heatsinks and backplates for maximum cooling performance.
VRM heatsink
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation.
ROG Water-cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into Armoury Crate, allowing you to track coolant temperatures and the flow rate of the entire loop.
USB 20Gbps TYPE-C
ASUS ROG Maximus Z790 Apex Encore comes loaded with two USB 20Gbps Type-C connectors. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Quick Charge 4+ technology to quickly charge devices at up to 60W. Requires a PCIe power supply cable to be plugged into the nearby 8-pin connector.
WiFi 7
Next-gen WiFi 7 chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds. WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features.
2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.
ROG SupremeFX
ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ASUS ROG Maximus Z790 Apex Encore’s SupremeFX implementation features the ALC4080 codec with up to 32-bit/384 kHz playback
Aura Sync
Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronised across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
