The ASRock Z790 PG Lightning features 14+1+1 Phase Power Design, DDR5 support and the latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Specifications
- Chipset: Intel Z790
- CPU Socket: LGA1700
- Supported CPU: Intel 12th & 13th Gen
- Memory Slots: 4
- PCIe Gen 5 X16 Slots: 1
- Form Factor: ATX
- 14+1+1 Phase Power Design
- Graphics Output Options: 1 HDMI, eDP
- 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- Realtek 2.5G LAN
- Nahimic Audio
Intel Z790
Chipset
LGA1700
Socket
Gen 5.0
PCIe
ATX
Form Factor

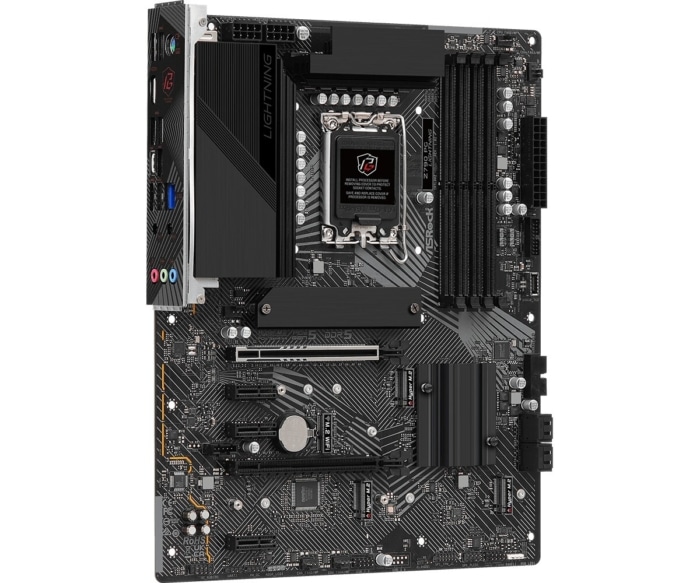

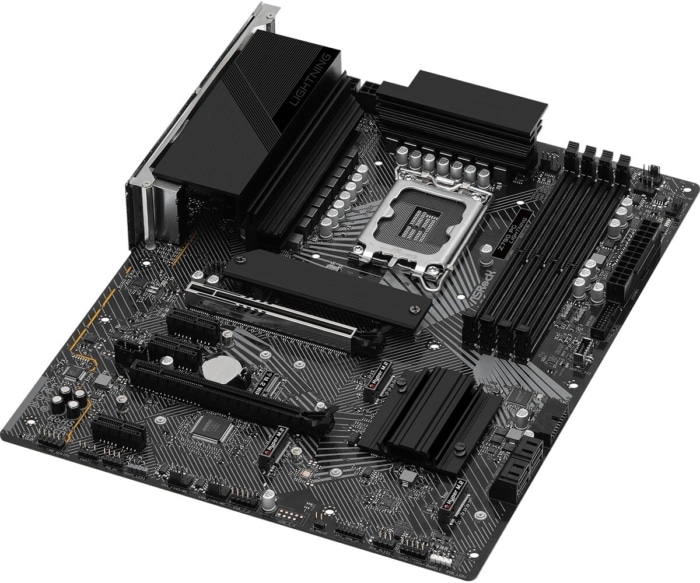

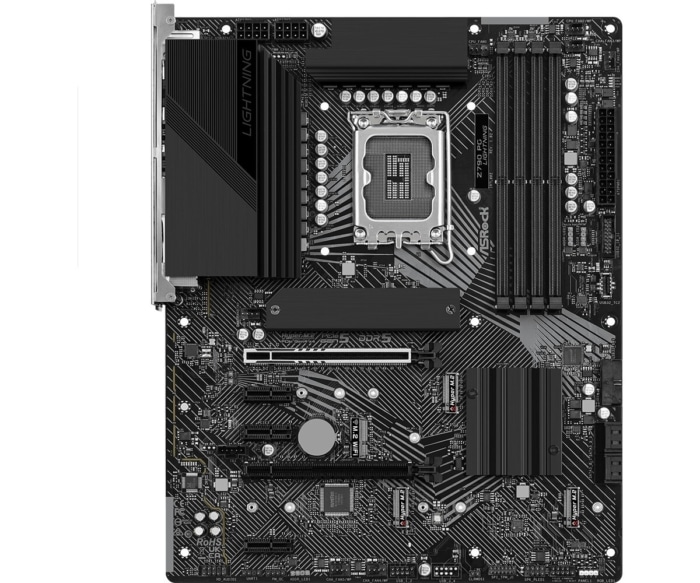

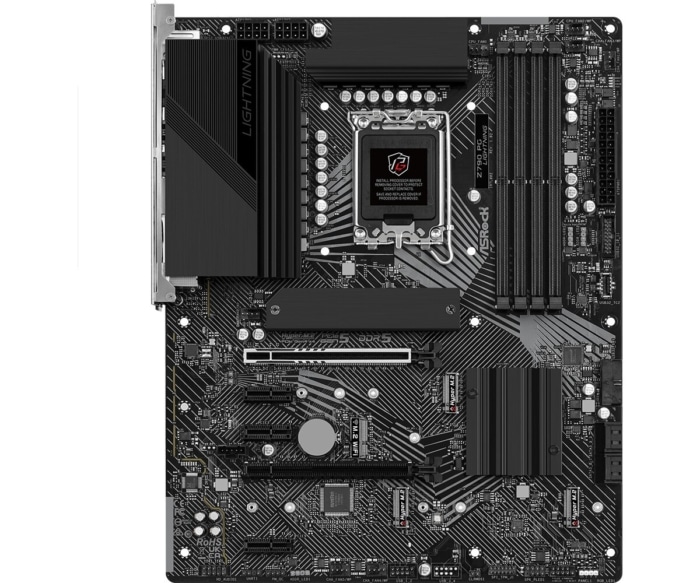

About the ASRock Z790 PG Lightning Motherboard
Optimised VRM Design
The ASRock Z790 PG Lightning features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
PCIe 5.0 + SMT
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximise stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

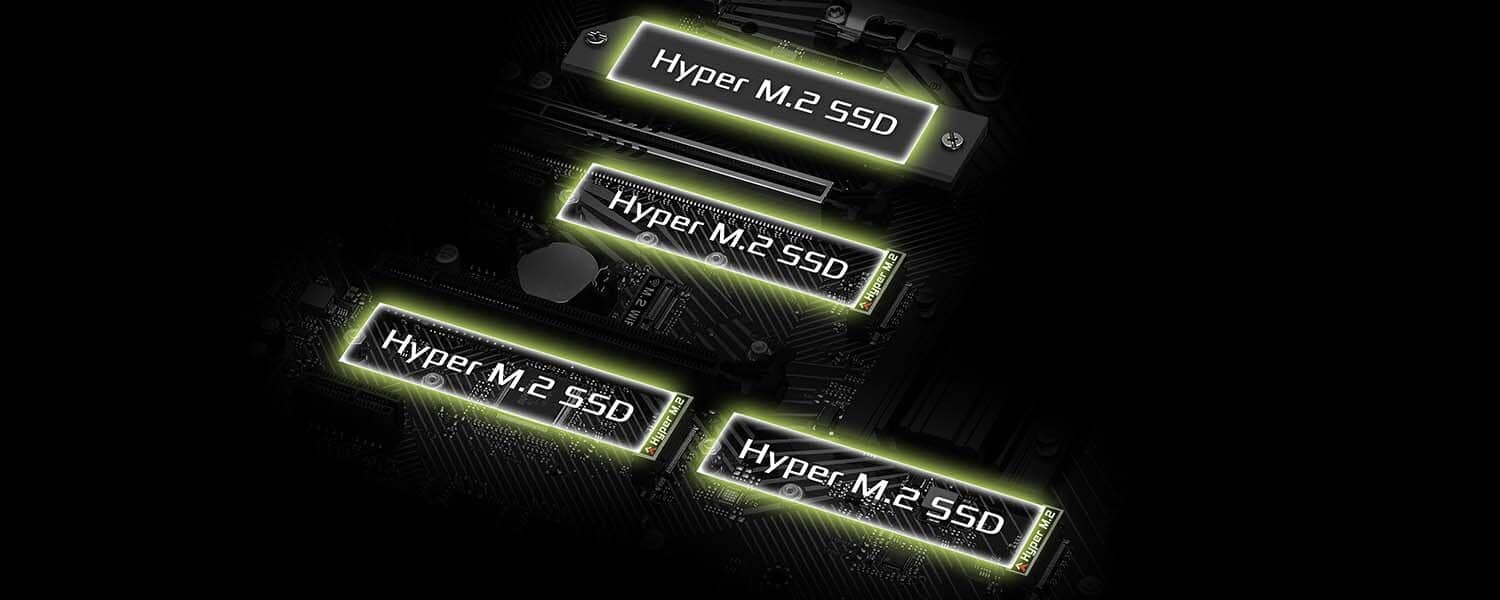

High Speed M.2 Solution
The ASRock Z790 PG Lightning motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow ASRock Z790 PG Lightning motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Dragon 2.5G LAN
Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

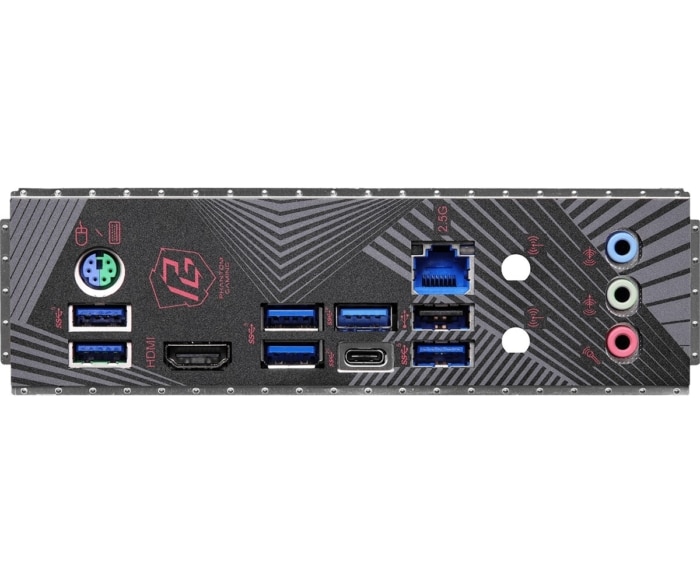

Rear USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
