Introducing the Gigabyte NVIDIA GeForce RTX 4080 SUPER AORUS MASTER 16GB GDDR6X Graphics Card – a powerhouse built on NVIDIA’s cutting-edge Ada Lovelace architecture. Designed for exceptional performance, it boasts 4th Gen Tensor Cores for up to 4x performance with DLSS 3, 3rd Gen RT Cores for 2x ray tracing efficiency, and a 256-bit memory interface backed by 16GB GDDR6X memory. The WINDFORCE cooling system, with its bionic shark fan tech, 12 composite copper heat pipes, and 3D active fans, ensures optimal heat dissipation for a cool and quiet operation.
The graphics card offers unprecedented customisation with the LCD Edge View, allowing real-time monitoring and displaying of custom texts, images, and even GIFs. Enhanced by RGB Fusion, the visual experience is further elevated through synchronisable lighting effects. Dual BIOS provides performance optimization or a quieter mode, while the metal backplate and anti-sag bracket safeguard the card’s structure.
For the ultimate competitive edge, NVIDIA Reflex delivers ultra-low latency for lightning-fast responsiveness, and DLSS 3 boosts frame rates for a smoother gaming experience. Whether for creative pursuits or immersive gaming, the RTX 4080 SUPER AORUS MASTER is designed to unleash new levels of power and creativity.
Specifications
- Base Clock: 2295 MHz
- Boost Clock: 2625 MHz
- Memory: 16 GB 23000MHz GDDR6X
- CUDA Cores: 10240
- Power Consumption: 320 W
- Recommended PSU: 700 W
- Form Factor: 3.75 Slots
- Dimensions (L x W x H): 357 x 163 x 75 mm
- Ada Lovelace GPU Architecture
- NVIDIA DLSS 3 and full ray tracing
- 4th Generation Tensor Cores
- 3rd Generation Ray Tracing Cores
- WINDFORCE Cooling System
- 3D Active Fan
- Anti-Sag Bracket
- Large Vapor Chamber & Heat-Pipe
2295 MHz
Base Clock
2625 MHz
Boost Clock
16 GB
GDDR6X Memory
10240
CUDA Cores
About the Gigabyte NVIDIA GeForce RTX 4080 SUPER AORUS MASTER 16GB GDDR6X Graphics Card
WINDFORCE Cooling System
The WINDFORCE cooling system features three 110mm newly designed bionic shark fans, alternate spinning, 12 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Aorus Bionic Fan Tech
The sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.
Double Ball Bearing
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
Large Vapor Chamber & Heat-Pipe
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Alternate Spinning
Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimising the offset occurred between airflows.
Screen Cooling
To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.
LCD Edge View
The LCD monitor displays not only graphics card information, but also various favourite texts, pictures, and GIFs. You can also adjust lighting effects via GIGABYTE CONTROL CENTRE.
Ultra Durable
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
RGB Fusion
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronise with other devices in GIGABYTE CONTROL CENTRE.

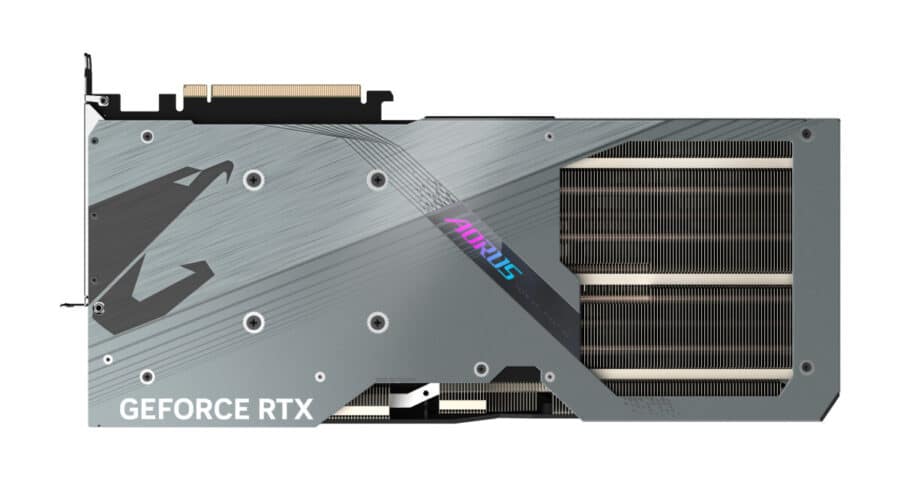

Protection Metal Backplate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Dual Bios
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
Anti-Sag Bracket
The new anti-sag bracket is tailored to each graphics card. It provides the optimised reinforcement and better overall visual appearance.
