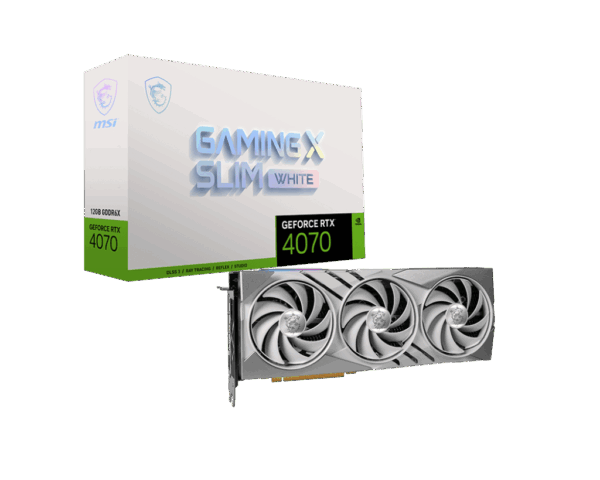

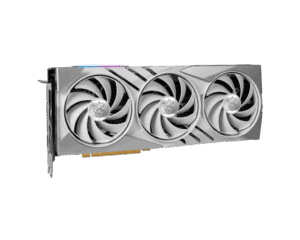

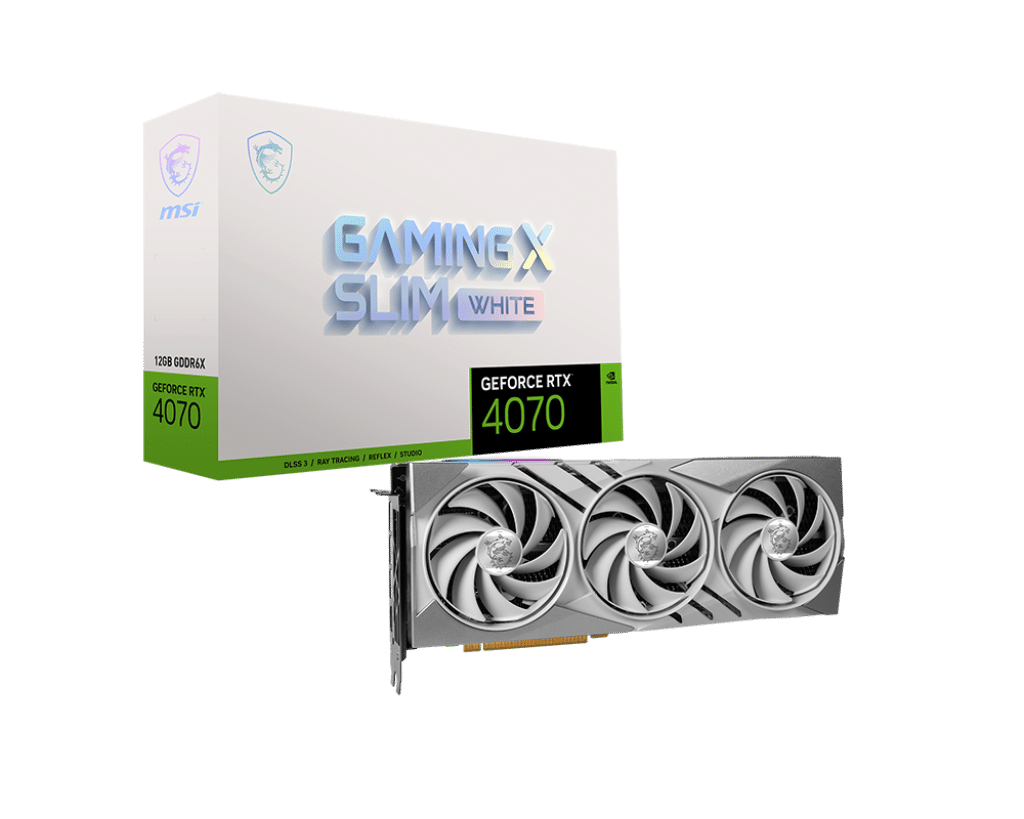

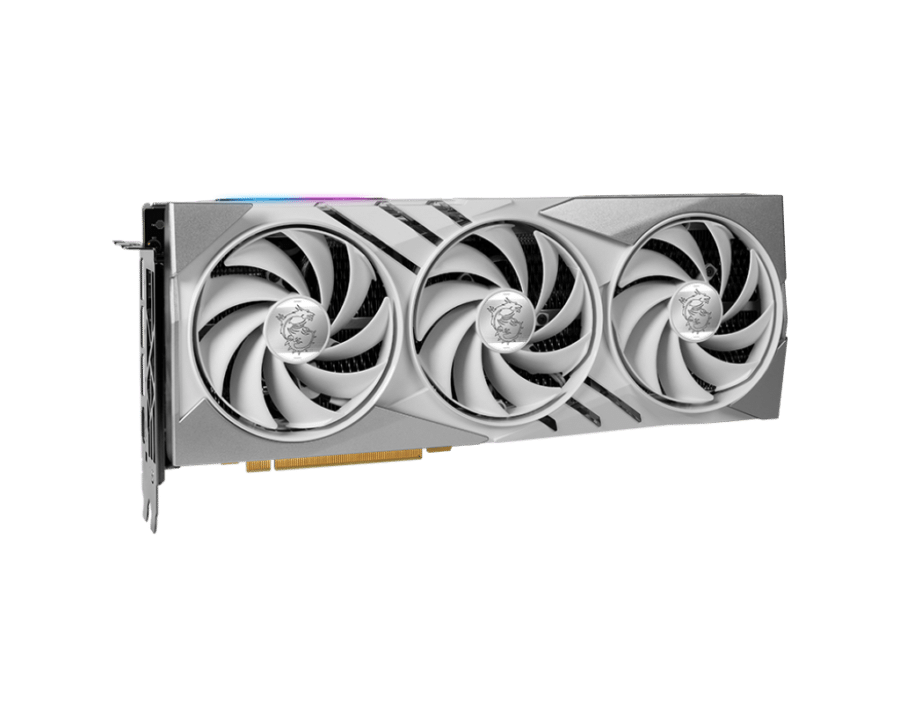

Play with style! MSI NVIDIA GeForce RTX 4070 Gaming X Slim is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
Get equipped for stellar gaming and creating with the MSI NVIDIA GeForce RTX 4070 Gaming X Slim. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Specifications
- Base Clock: 1920MHz
- Boost Clock: 2610MHz (2625MHz MSI Center)
- Memory: 12GB 21000MHz GDDR6X
- CUDA Cores: 5888
- Power Consumption: 215W
- Recommended PSU: 650W
- Form Factor: 2.2 Slots
- Dimensions: 307 x 125 x 46 mm
- NVIDIA Ada Lovelace architecture
- 4th Generation Tensor Cores
- 3rd Generation RT Cores
- TRI FROZR 3 Thermal Design

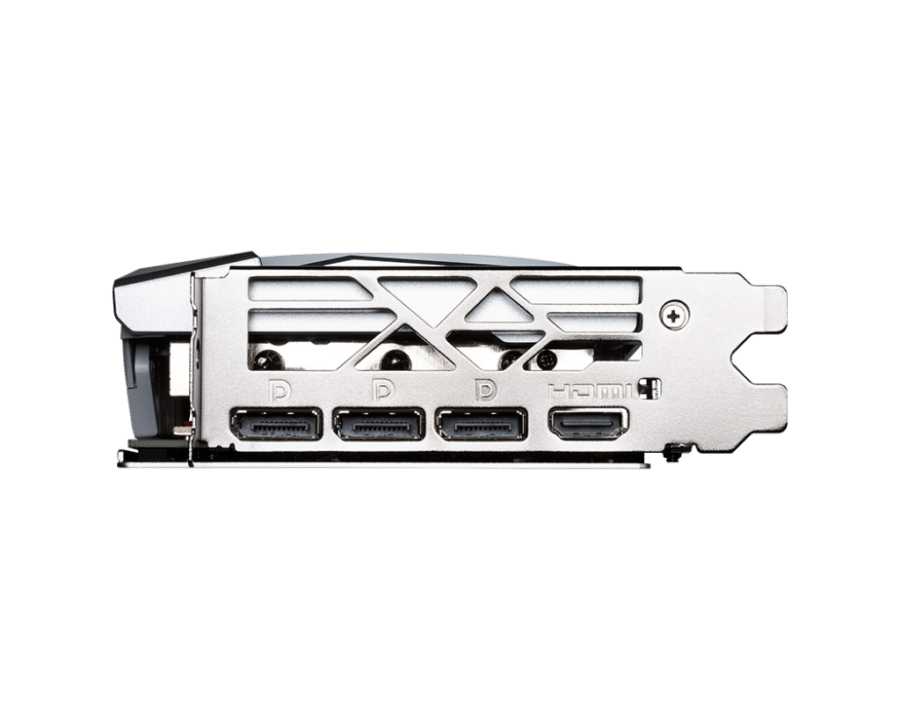

- DisplayPort x 3 (v1.4a)
- HDMI x 1
- Afterburner
- MSI Center
1920MHz
Base Clock
2610MHz
Boost Clock
12GB
GDDR6X Memory
5888
CUDA Cores
About the MSI NVIDIA GeForce RTX 4070 Gaming X Slim Graphics Card
TRI FROZR 3 Thermal Design
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the MSI NVIDIA GeForce RTX 4070 Gaming X Slim graphics card. Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.

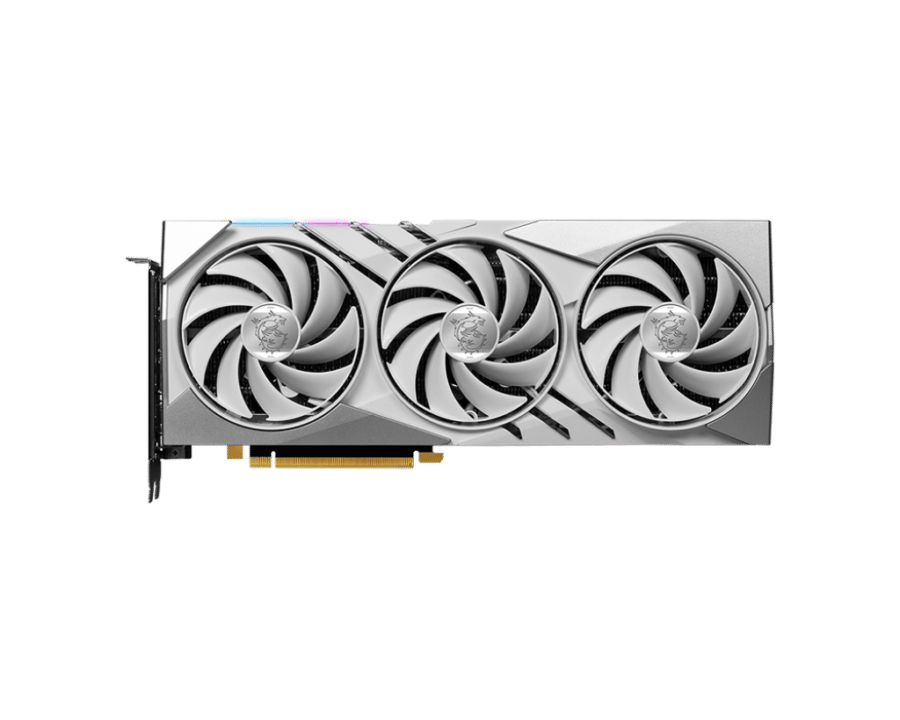

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
Copper Baseplate
Heat from the MSI NVIDIA GeForce RTX 4070 Gaming X Slim GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core Pipes
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink. Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimising the balance between cooling and quieter acoustics.

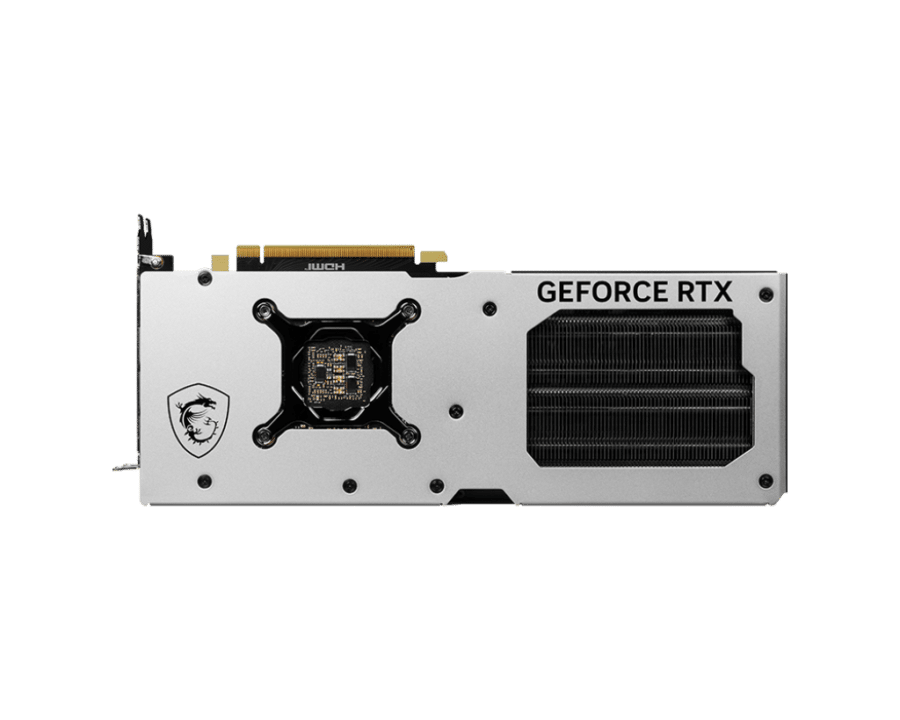

Unrestricted Cooling
A large airflow vent on the backplate allows exhaust air to pass through directly.
Double Ball Bearing
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.

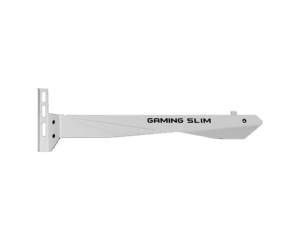

Your Support Character

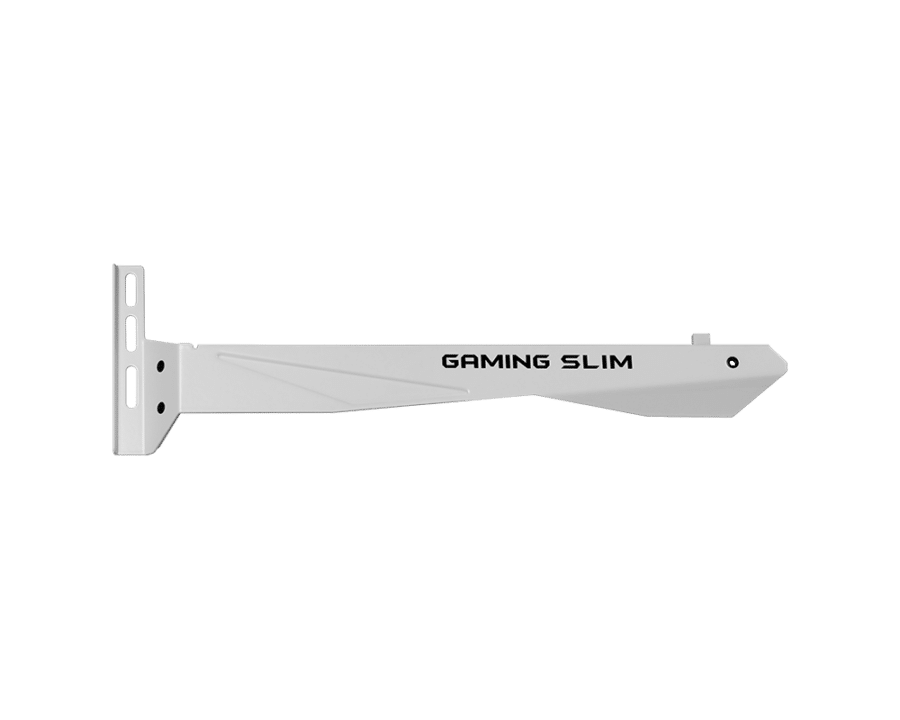

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
