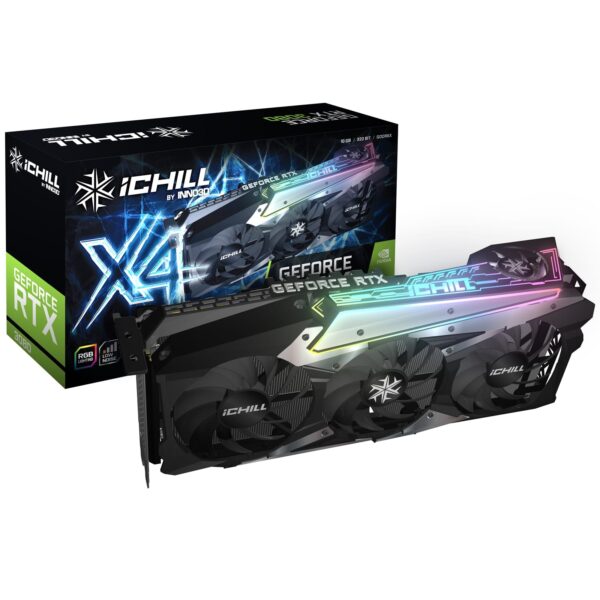

The Inno3D GeForce RTX 3080 iCHILL X4 introduces a card with cutting edge fan technology. The Inno3D RTX 3080 iCHILL X4 has three 90mm Scythe design fans to keep the card cool with a 4.5cm side fan to aid in cooling the MOSFET area.
Specifications
- Base Clock: 1440MHz
- Boost Clock: 1770MHz
- Memory: 10GB 19000MHz GDDR6X
- CUDA Cores: 8704
- Power Consumption: 340W
- Recommended PSU: 700W
- Form Factor: 3 Slots
- Dimensions: 300 x 135 mm
- VR Ready
- PhysX/CUDA Enabled
- NVIDIA Ampere
- 8nm Process
- Real-Time Ray Tracing
- 3-year Warranty
1440MHz
Base Clock
1770MHz
Boost Clock
10GB
GDDR6 Memory
8704
CUDA Cores
About the Inno3D RTX 3080 iCHILL X4 LHR Graphics Card

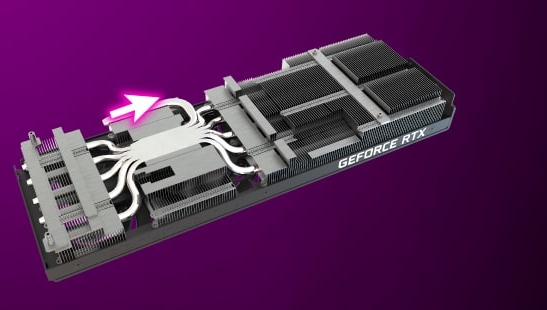

Enhanced Memory Cooling
The 7 heat pipes transfer heat from the memory to the heat spreader. This works to lower memory temperatures by up to 10°C.

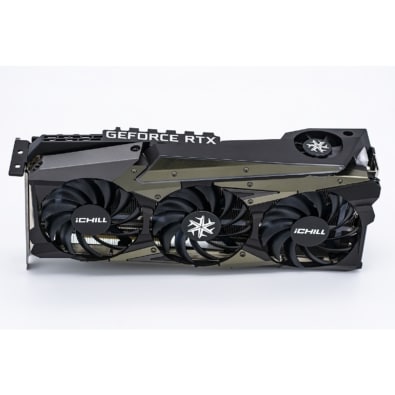

Powerful Triple Fan
The Inno3D RTX 3080 iCHILL X4 graphics card has three 90mm fans that keep cooling at an optimal level with minimal noise. The scythe fan blades are designed to move large volumes of air at low fan speeds.

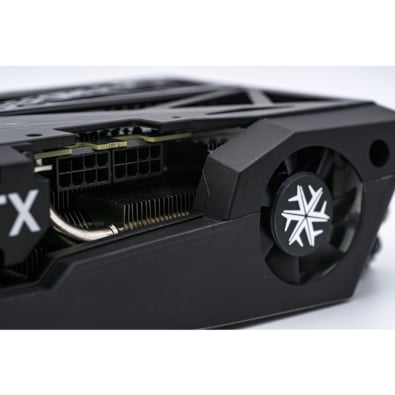

MOSFET Side Fan
In addition to the 90mm Scythe fans, theInno3D RTX 3080 iCHILL X4 graphics card has a 45mm rotor side fan to keep the MOSFET area cool and allow for higher boost clocks.

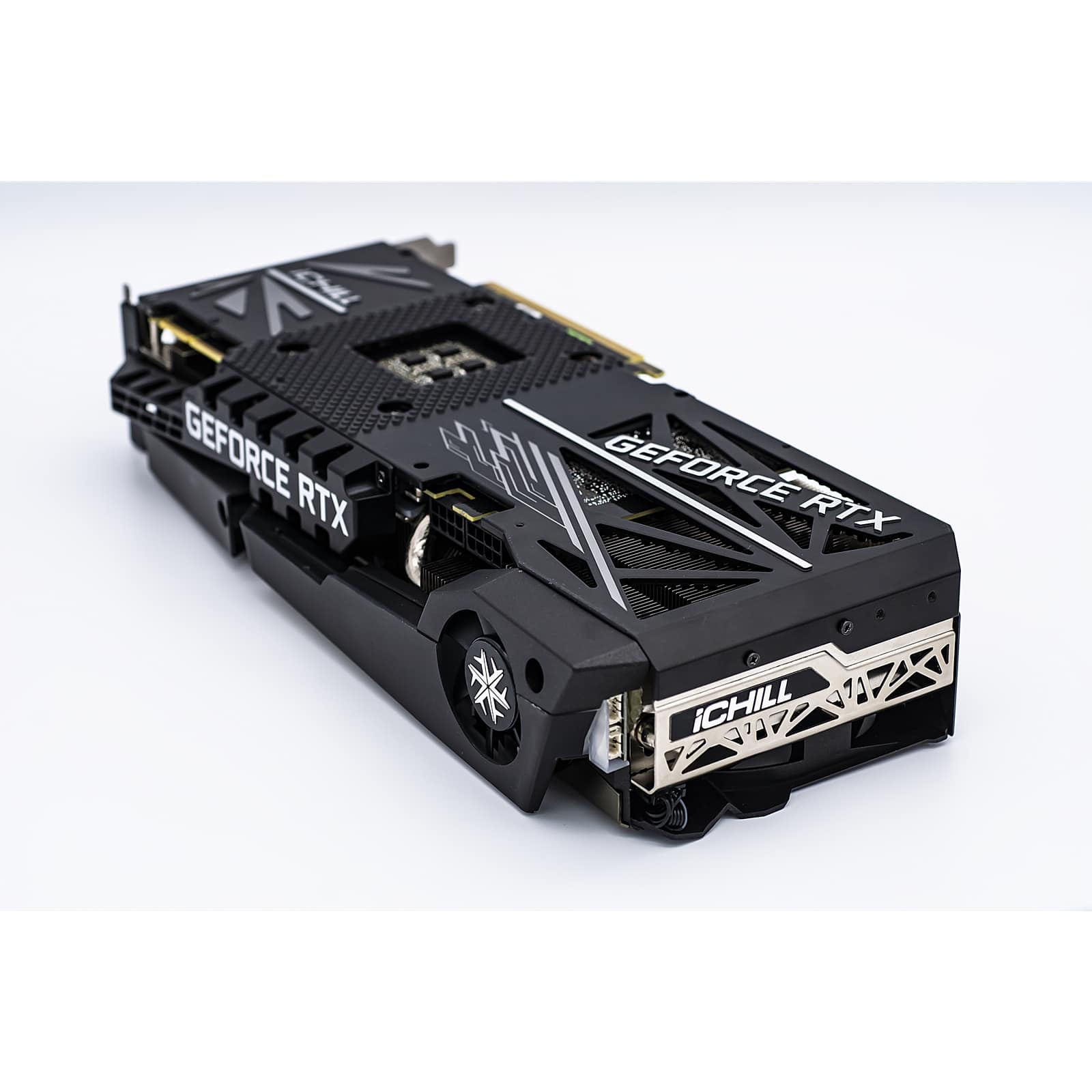

Backplate Design
The Inno3D RTX 3080 iCHILL X4 backplate reinforces the graphics card with vents to allow good airflow for cooling. The studded surface pattern increases surface area for greater cooling capacity of the memory and components.
