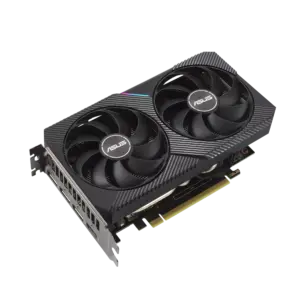

The ASUS DUAL NVIDIA GeForce RTX 3060 Ti V2 MINI OC Graphics Card is designed for compact gaming builds and the Intel NUC 9. Features like the Axial-tech fan design, a custom 2-slot thermal solution, and Auto-Extreme Technology make the MINI an obvious choice for those who want an SFF system capable of rivalling the graphics performance of full-sized builds and burly desktops.
Specifications
- Base Clock: 1410MHz
- Boost Clock: 1710MHz
- Memory: 8GB 14000MHz GDDR6
- CUDA Cores: 4864
- Recommended PSU: 750W
- Form Factor: 2 Slots
- Dimensions: 200 x 123 x 38 mm
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- OC Edition
- Lite hash rate
- Axial-tech fan design
- 0dB Technology
1410MHz
Base Clock
1710MHz
Boost Clock
8GB
GDDR6 Memory
4864
CUDA Cores
About the ASUS DUAL NVIDIA GeForce RTX 3060 Ti V2 MINI OC Graphics Card

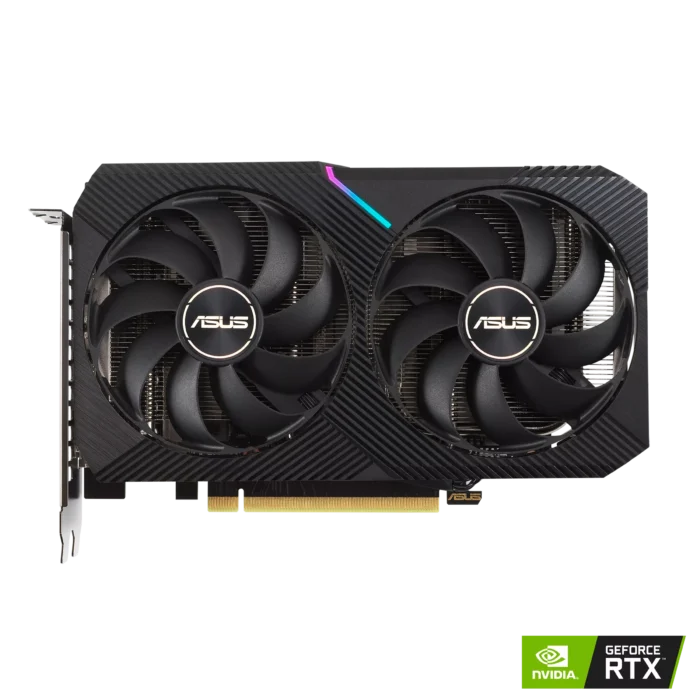

Axial-tech Fan Design
Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.
0dB Technology
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

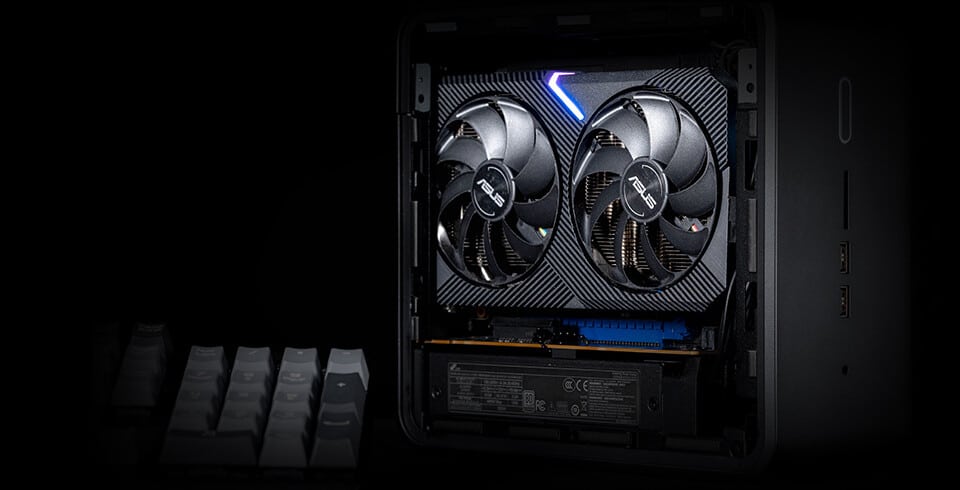

2-slot Design
The ASUS DUAL NVIDIA GeForce RTX 3060 Ti V2 MINI OC features a cooling solution that fits into a 2-slot design less than 20cm in length, making it compatible with small chassis and the Intel® NUC 9 Kits without sacrificing thermal performance. A redesigned shroud, heatsink, and heatpipe layout allows two Axial-tech fans to take advantage of the mesh side panel of the Intel® NUC 9 Extreme Kit and Intel® NUC 9 Pro Kit, while maintaining space for cable management and airflow to the CPU cooler.
Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

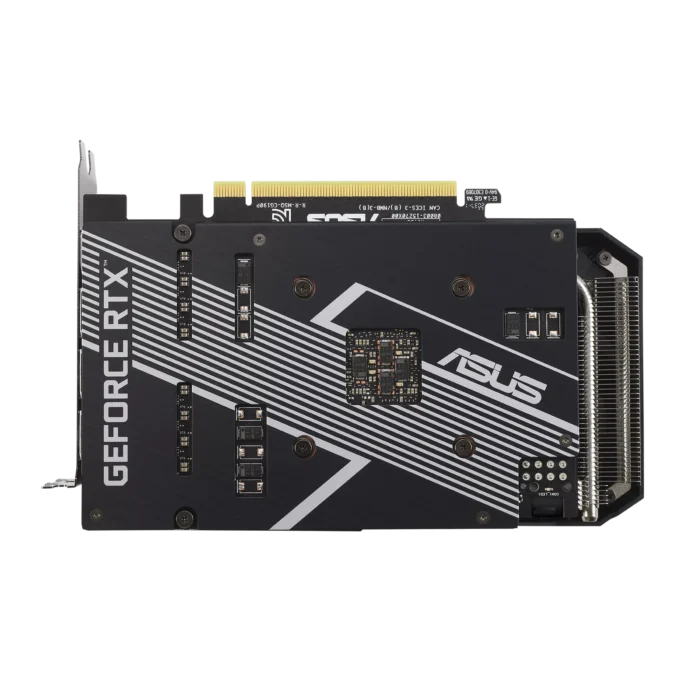

Protective Backplate
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.
Stainless Steel Bracket
The mounting bracket of the ASUS DUAL NVIDIA GeForce RTX 3060 Ti V2 MINI OC has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.
