The Sapphire NITRO+ AMD Radeon RX 6800 XT SE delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with Sapphire’s V-Shape Fin Design reduces air resistance. It centralises airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next-gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon RX 6800 XT SE components icy cool.
The brand new Hybrid Fan Design provides strong air pressure while keeping fan noise low. For the SE model, incredible ARGB Lighting across the backplate is boosted with striking ARGB fans using Sapphire’s TriXX software. With beautiful aesthetic styling, the NITRO+ AMD Radeon RX 6800 XT SE is a stunning addition to every enthusiast gamer’s PC.
NITRO Charge your PC with the NITRO+ AMD Radeon RX 6800 XT SE and elevate your gaming experience to the next level!
Specifications
- Core Clock: 2110MHz
- Boost Clock: 2360MHz
- 7nm GPU
- Stream Processors: 4608
- Memory: 16384MB 16000MHz GDDR6
- DirectX 12 Support
- Hardware Raytracing
- Form Factor: 2.7 slots, ATX
- Dimension: 310(L)X 134.3(W)X 55.3 (H)mm
- Power Consumption: 350W (850W minimum power supply)
- PCI Express 4.0 Support
- AMD FreeSync Technology
- DisplayPort 1.4 with DSC
- HDMI 2.1 VRR
- Vulkan Support
- RDNA
- Freesync 2 HDR support
- 2yr Warrant
- Video Streaming up to 8K
- RGB Fans

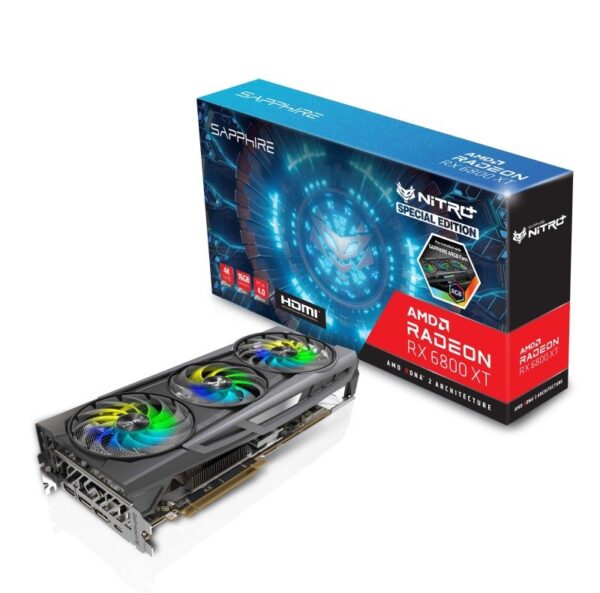

About the Sapphire NITRO+ RX 6800 XT SE

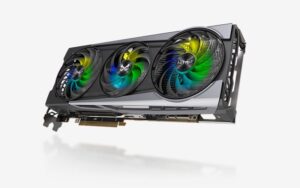

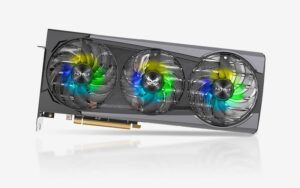

TRI-X Cooling Technology – New for AMD RX 6000 Series
Sapphire’s Tri-X cooling technology keeps your temperatures low for the highest framerate.
The Tri-X Cooling Solution is powered by two larger fans on the outside and one smaller fan in the middle counter-spinning to boost airflow beneath the fans. The angled blades on the fans increase the airflow to ensure that Tri-X cooling is a highly efficient but quiet cooling solution.

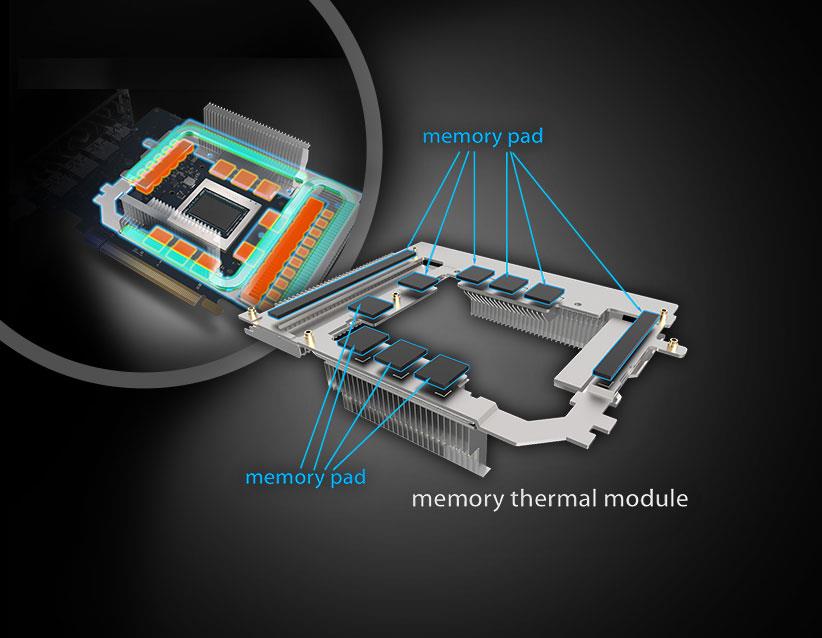

Integrated Cooling Module & K6.5 Memory Pad
The combined Memory & VRM cooling module cools the memory, MOSFET, and the chokes. Two heat pipes are added underneath the module to dissipate the heat from the components with better efficiency.
When compared to the previous K5, the K6.5 Memory Pad has nearly 38% better thermal conductivity between the components and the cooler.
Hybrid Fan Blade
The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate improved air pressure while keeping the fan noise low.
WAVE Fin design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction as air goes through the fin module resulting in a reduction of noise.
The V-shape fin design on top of the GPU accelerates and centralises the airflow around the GPU to dissipate heat efficiently.
Personalize the look of your NITRO+ card with its built-in ARGB and ARGB fans
The TriXX Software opens you up to a range of features such as TriXX Boost, Software BIOS Switch and NITRO Glow ARGB LED Effect, which can only be controlled via TriXX. Customise your individual style with TriXX Software and heighten your gaming experience!
Switch between performance mode and silent mode using our TriXX software for a quick and easy switching between your dual BIOS modes.
With tasteful shroud design augmented by ARGB LEDs, you can change the colours of the LEDs for a customised design—all controlled via TriXX software. Choose from various modes including Fan Speed Mode, PCB Temperature Mode, the colourful rainbow mode, or turn off the LEDs.
