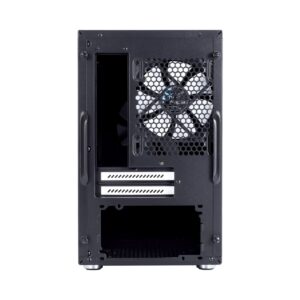

  • Fractal Design Define Nano S Black Window Back View

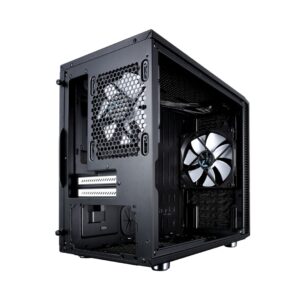

  • Fractal Design Define Nano S Black Window Angled Back View
  • Fractal Design Define Nano S Black Window Side View
  • Fractal Design Define Nano S Black Window Angled Front View

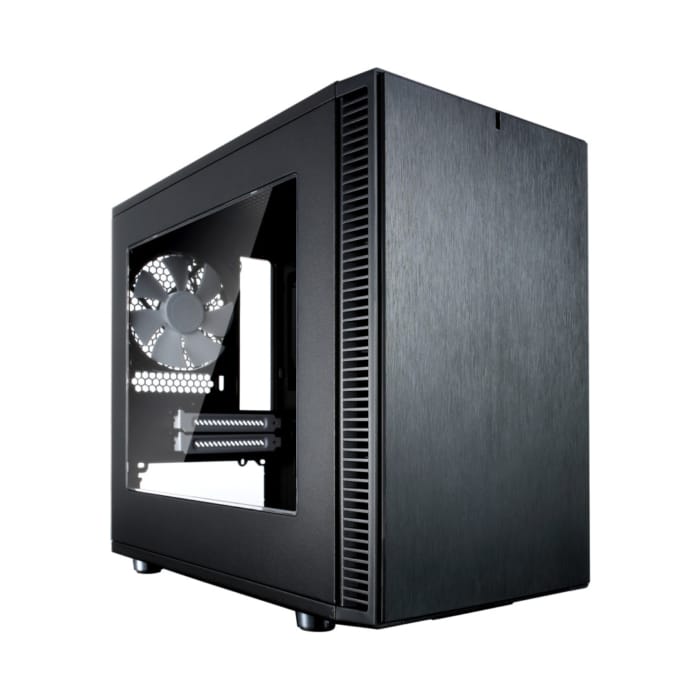

Fractal Design Define Nano S Black Window Angled Front View
Fractal Design

Fractal Design Define Nano S Black Window – Mini ITX, 2 Fans, ATX PSU & 315mm GPU Support, 280mm Watercooling, Up to 4 HDD/SSD Clear Window Quiet PC Case

  • User-friendly construction compatible with full-size components and with superior cable management
  • Flexible storage options with room for up to four drives
  • Accommodates a variety of radiator sizes
  • Features two Dynamic Series fans – 1 GP-12 and 1 GP-14
  • Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust
  • Easy-to-clean filters on the bottom and front

Order Now

£72.99

or 4 interest-free payments of £18.25 with Clearpay

Next working day delivery

In stock

Brand Fractal Design SKU CASE-FRAC-DEFNASBLKWDW Manufacturer part FD-CA-DEF-NANO-S-BK-W EAN 7350041084136

Spread the Cost

4 × £18.25 Four interest-free instalments with Clearpay
How Clearpay works

Earn Loyalty Points

911 points worth £45.55 towards your next order
How loyalty points work

Product Description

The Fractal Design Define Nano S is an ITX case that features compatibility with high-end, full-size components, superior sound dampening, and an ATX-like layout.

This case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters. With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Fractal Design Define Nano S can cool enthusiast-level components.

Features

  • User-friendly construction compatible with full-size components and with superior cable management
  • Flexible storage options with room for up to four drives
  • Accommodates a variety of radiator sizes
  • Features two Dynamic Series fans – 1 GP-12 and 1 GP-14
  • Featuring an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust
  • Easy-to-clean filters on the bottom and front

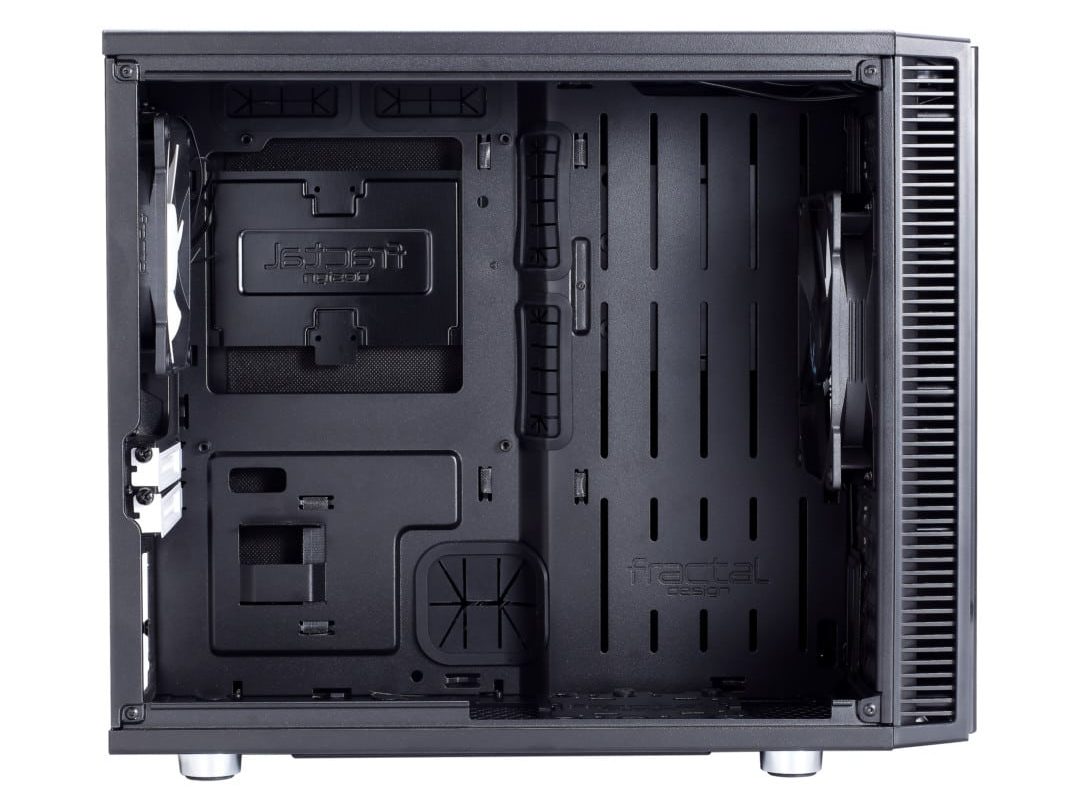

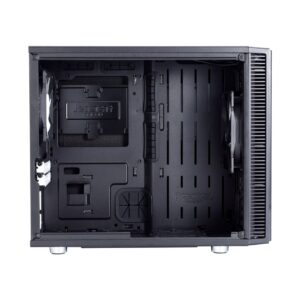

Fractal Design Define Nano S Black Window Side View

About the Fractal Design Define Nano S Black Window PC Case

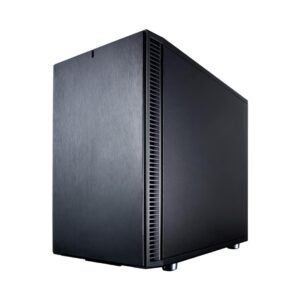

Fractal Design Define Nano S Black Window Angled Front View

Optimised for high airflow

Features two Dynamic Series fans – 1 GP-12 and 1 GP-14 – with an adapter included for motherboards with limited fan headers and an open interior allowing an unobstructed airflow path from the front of the case to the rear exhaust.

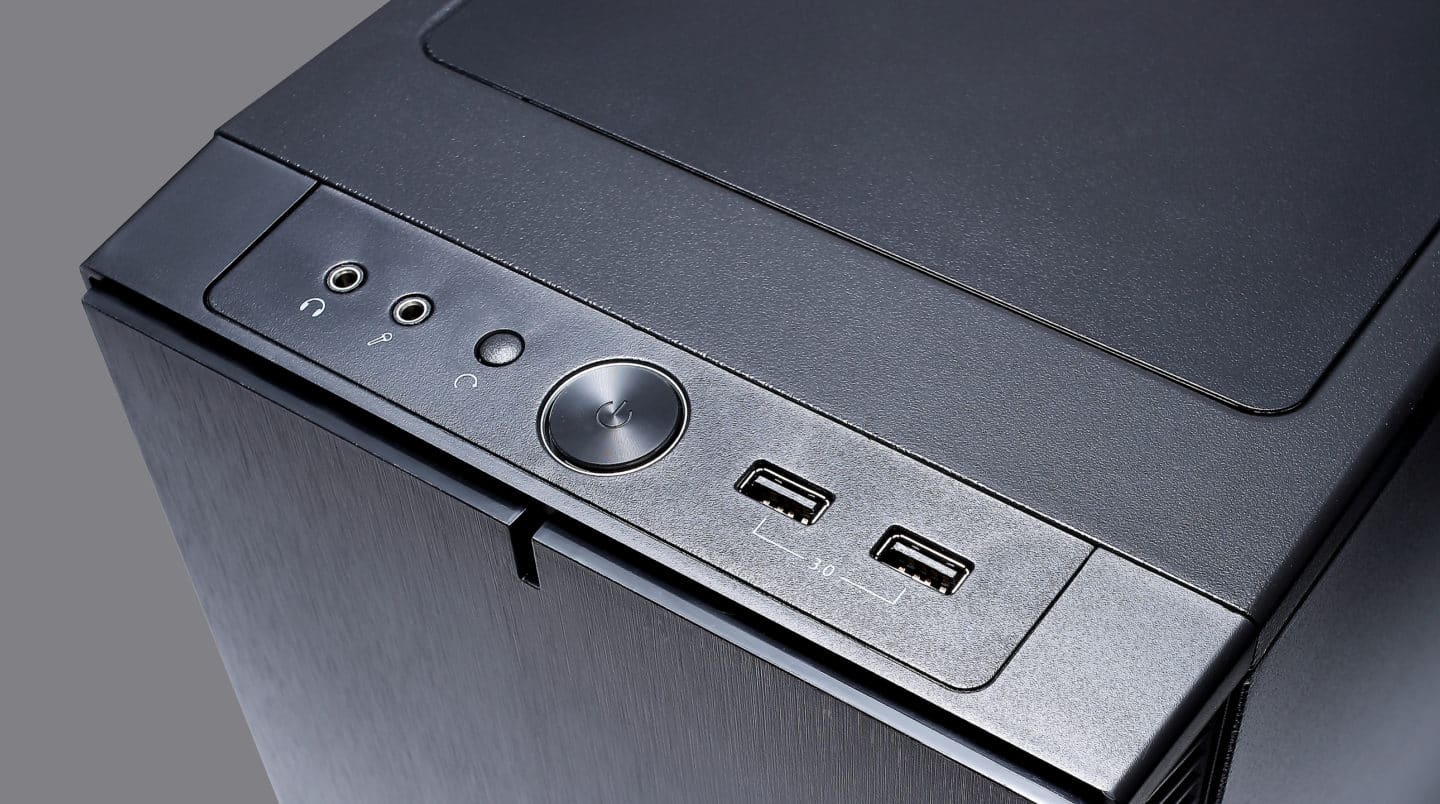

Fractal Design Define Nano S Black Window Cover View

Easy-to-clean filters

Easy-to-clean filters on the bottom and front, spanning the PSU position, with the bottom filter ejecting from the front for easy-access.

ModuVent technology

Designed for silent computing with sound dampening and ModuVent technology.

Water-cooling ready

Accommodates a variety of radiator sizes and includes brackets for reservoir and pump mounting.

Specification

Specification

Warranty 2 Years
Dimensions 203 x 330 x 400 mm
Weight 5 kg
CPU Cooler Maximum Height 162 mm
RGB Fans No
Graphics Card Maximum Length 315 mm with front fans mounted (cards wider than the dual slot bracket are not recommended), Max recommended GPU thickness: 39 mm
Power Supply Unit Maximum Length 160 mm
Supported Cooling Systems Air cooling, Water cooling
Built-in Cooling Front: 1 x Dynamic GP14 140 mm fan, Rear: 1 x Dynamic GP12 120 mm fan
Fan Mounts Bottom: 1 x 120 mm, Front: 2 x 120 / 140 mm, Rear: 1 x 120 mm, Top: 2 x 120 / 140 mm
Radiator Mounts Bottom: 120 mm (max thickness and length: 85 mm x 160 mm), Front: 120/240 mm or 140/280 mm (max width 147 mm, max length 312 mm; some radiators extend beyond the screw holes), Rear: 120 mm (max width 125 mm; some radiators extend beyond the screw holes), Top: 120/240 mm (max component height on motherboard 35 mm. Big heat sinks on RAM or power regulators around CPU could conflict with this restriction.)
Form Factor Mini ITX
Supported Motherboard Sizes Mini DTX, Mini ITX
Supported PSU Size ATX
Connectors 2 x USB 3.0, Audio in/out, HDD activity LED (blue), Power button with LED (blue), Reset button
Drive Bays 2 x 2.5" dedicated SSD unit positions (up to 13 mm thick), 2 x 3.5" HDD/2.5" SSD positions
Motherboard Expansion Slots 2 Expansion slots
RGB Case Lighting No
Materials Left side panel: Clear transparent window, Right side panel: Industrial sound-damped steel
Colour Black
Windowed Side Panel Yes
Height (mm) 400mm
Length (mm) 203mm
Width (mm) 330mm

Product identity

Brand Fractal Design
SKU CASE-FRAC-DEFNASBLKWDW
Manufacturer part FD-CA-DEF-NANO-S-BK-W
Barcode 7350041084136
