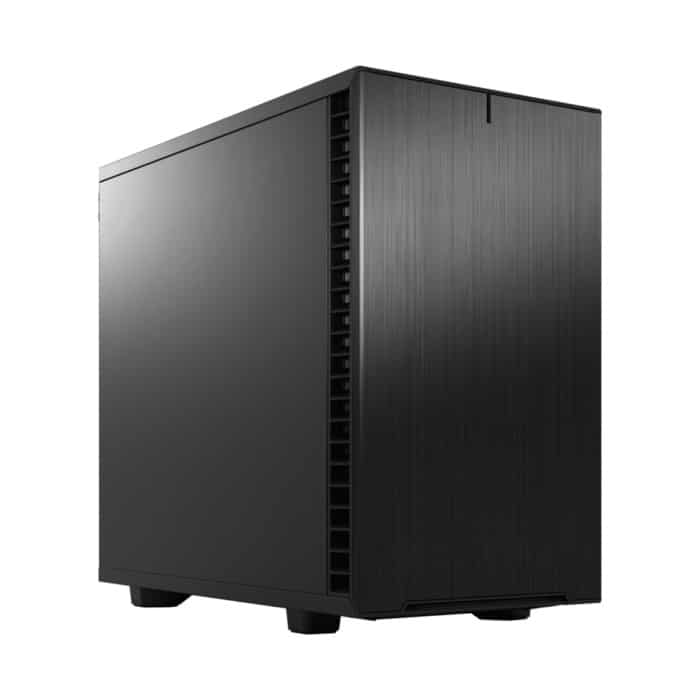

Fractal Design Define 7 Nano Black Solid Front View
Fractal Design

Fractal Design Define 7 Nano Black Solid – Mini ITX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C, 306 mm GPU Support PC Case

  • Accommodates any Mini ITX and Mini-DTX motherboard
  • Room for GPU up to 306 mm with a 25 mm front fan
  • Install up to 6 x 120 mm or 3 x 140 mm fans (140mm top fan needs to be slim max 15mm)
  • 1 x 120 mm and 1 x 140 mm Dynamic X2 GP fans included
  • Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
  • Brushed aluminium front and top-latching side panels
  • Silence-optimised construction

Order Now

£97.99

or 4 interest-free payments of £24.50 with Clearpay

Next working day delivery

In stock

Brand Fractal Design SKU CASE-FRAC-DEF7NBLKSLD Manufacturer part FD-C-DEF7N-01 EAN 7340172702832

Spread the Cost

4 × £24.50 Four interest-free instalments with Clearpay
How Clearpay works

Earn Loyalty Points

911 points worth £45.55 towards your next order
How loyalty points work

Product Description

The Fractal Design Define 7 Nano re-defines precision, bringing clean design and a host of features from its larger siblings to a minimised form factor.

The compact yet spacious interior can accommodate all Mini ITX and Mini-DTX motherboards, and there’s room for a GPU up to 306 mm with a 25 mm front fan, making it a highly versatile Nano case.

Features

  • Accommodates any Mini ITX and Mini-DTX motherboard
  • Room for GPU up to 306 mm with a 25 mm front fan
  • Install up to 6 x 120 mm or 3 x 140 mm fans (140mm top fan needs to be slim max 15mm)
  • 1 x 120 mm and 1 x 140 mm Dynamic X2 GP fans included
  • Flexible storage option supporting one 3.5” drive and three 2.5’’ drives
  • Brushed aluminium front and top-latching side panels
  • Silence-optimised construction

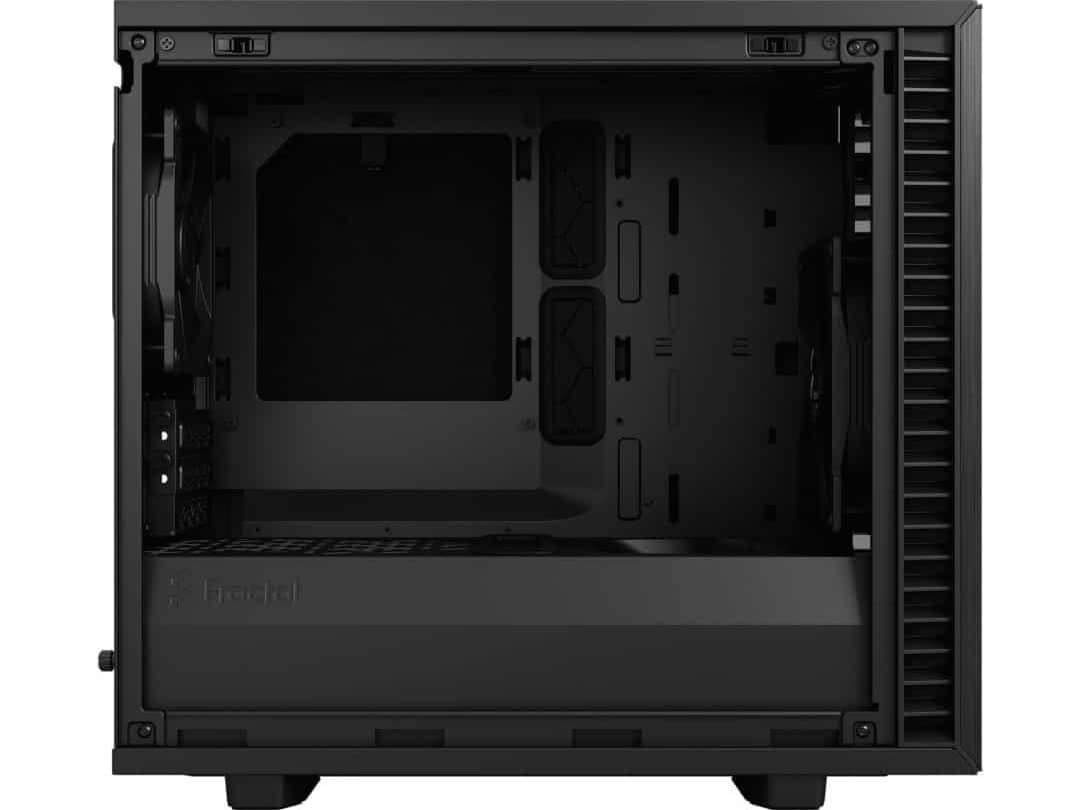

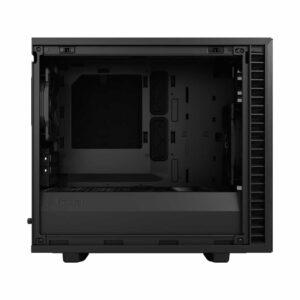

Fractal Design Define 7 Nano Black Solid Side View

About the Fractal Design Define 7 Nano Black Solid PC Case

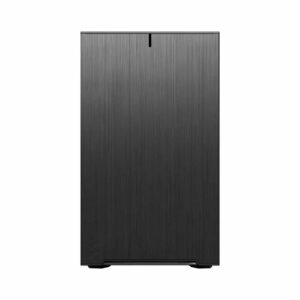

Fractal Design Define 7 Nano Black Solid Front View

A Sophisticated Look

Brushed aluminium front and top-latching side panels offer a clean sophisticated look. Silence-optimised construction with industrial sound-damped front, top, and side panels.

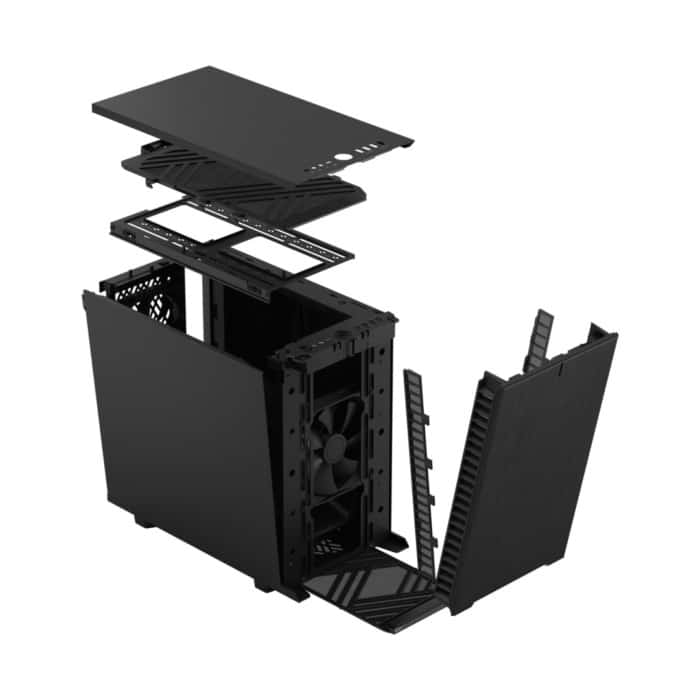

Fractal Design Define 7 Nano Black Solid Layers View

Swap Between Steel and Ventilation

The top panel effortlessly swaps from closed steel panel to filtered ventilation. The Fractal Design Define 7 Nano features easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access.

Fractal Design Define 7 Nano Black Solid Cover View

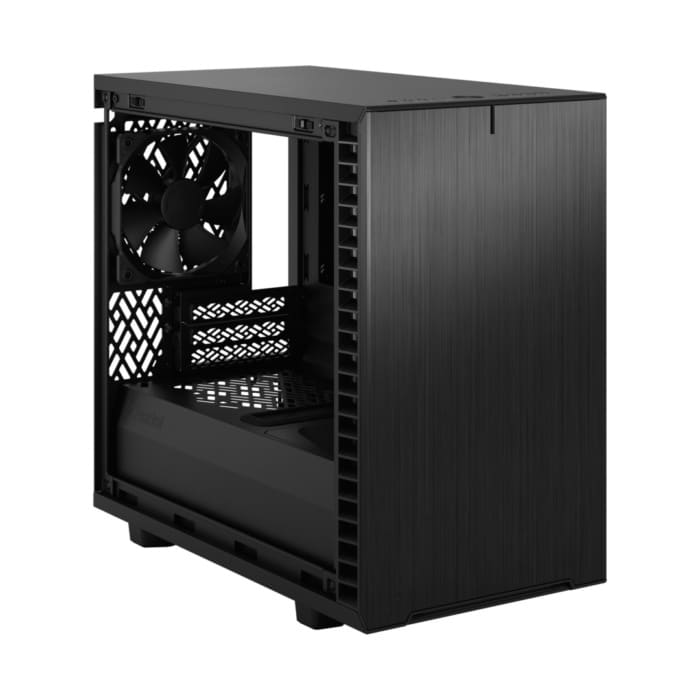

Fractal Design Define 7 Nano Black Solid Angled Front View

Superior Airflow

The open interior layout creates a smooth airflow path from intake to rear exhaust. Install up to 6 x 120 mm or 3 x 140 mm fans (140mm top fan needs to be slim max 15mm, 1 x 120 mm and 1 x 140 mm Dynamic X2 GP fans included).

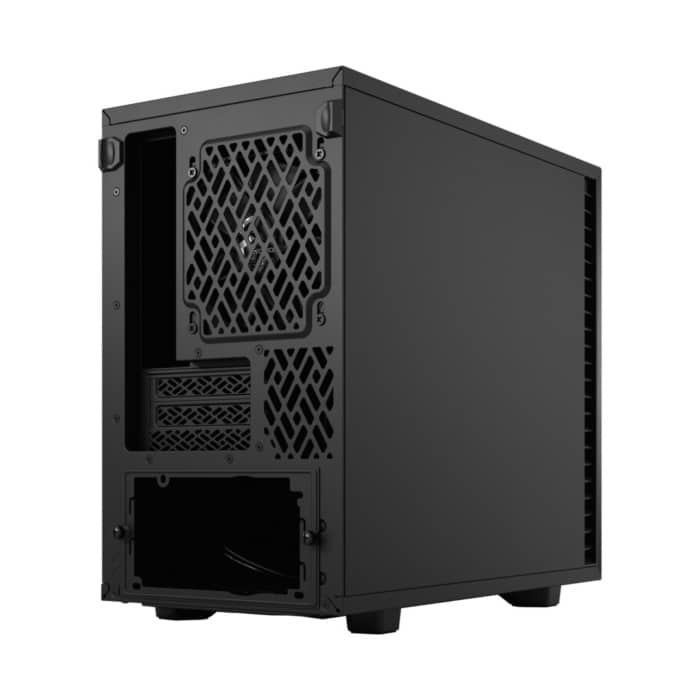

Fractal Design Define 7 Nano Black Solid Rear View

Sizing Up Your GPU

The Fractal Design Define 7 Nano offers room for GPU up to 306 mm with a 25 mm front fan. Two-part modular air duct for increased GPU airflow. Bridgeless PCI expansion slots ensure unrestricted GPU exhaust.

Fractal Design Define 7 Nano Black Solid Cover View

Removable Top Bracket

The removable top bracket fully exposes case interior for effortless installation and cable routing.

Small Yet Spacious

Compact yet spacious interior accommodates any Mini ITX and Mini-DTX motherboard.

More in Store

Flexible storage option supporting one 3.5” drive and three 2.5’’ drives.

Type-C Interface

Five front USB ports including one USB Type-C with fast charging support and speeds up to 10Gbps.

Specification

Specification

Warranty 2 Years
Dimensions 399 x 205 x 361 mm
Weight 7.2 kg
CPU Cooler Maximum Height 167 mm
RGB Fans No
Graphics Card Maximum Length 331 mm, 306 mm with front fan
Power Supply Unit Maximum Length 165 mm recommended (200 mm without HDD-tray and modular air duct)
Supported Cooling Systems Air cooling, Water cooling
Built-in Cooling Front: 1 x Dynamic X2 GP-14 140mm fan, Rear: 1 x Dynamic X2 GP-12 120mm fan
Fan Mounts Bottom: 1 x 120 mm (requires removal of HDD tray), Front: 2 x 120 / 2 x 140 mm, Rear: 1 x 120 mm, Top: 2 x 120 / 1 x 140 mm slim (max 15 mm)
Radiator Mounts Bottom: N/A, Front: 120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit), Rear: 120 mm radiator, Top: N/A
Form Factor Mini ITX
Supported Motherboard Sizes Mini DTX, Mini ITX
Supported PSU Size ATX
Connectors 1 x USB 3.1 Gen 2 Type-C, 2 x USB 2.0, 2 x USB 3.0, Audio in/out
Drive Bays 3.5"/2.5" drive mounts: 1 (included), Combined 3.5/2.5" drive mounts: 3 (2 included)
Motherboard Expansion Slots 2 Expansion slots
RGB Case Lighting No
Materials Left side panel: Industrial sound-damped steel, Right side panel: Industrial sound-damped steel
Colour Black
Windowed Side Panel No
Height (mm) 361mm
Length (mm) 399mm
Width (mm) 205mm

Product identity

Brand Fractal Design
SKU CASE-FRAC-DEF7NBLKSLD
Manufacturer part FD-C-DEF7N-01
Barcode 7340172702832
