Asus ROG Z11 RGB – Mini-ITX/-DTX, Tilt Design, USB-C, 3-slot GFX & 240mm Radiator Support, ARGB Controls, Dual Orientation, Glass Panels Gaming PC Case

  • Premium aesthetics: 4 mm tempered glass panels with aluminum frame and integrated Aura Sync lighting create a sleek and stylish appearance
  • Patented 11° tilt design & optimised airflow
  • Supports one ATX PSU, 3-slot graphics card without a riser cable, 240 mm radiator, water-cooling pump and reservoir, and up to five fans
  • Built-in extension hub and advanced front panel I/O ports
  • Easy cable management and case maintenance
  • Dual orientation

Order Now

£85.99

or 4 interest-free payments of £21.50 with Clearpay

Next working day delivery

In stock

Brand ASUS SKU CASE-ASUS-ROGZ11 Manufacturer part 90DC00B0-B39000 EAN 4718017607834

Spread the Cost

4 × £21.50 Four interest-free instalments with Clearpay
How Clearpay works

Earn Loyalty Points

911 points worth £45.55 towards your next order
How loyalty points work

Product Description

ASUS ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximise utility, flexibility and connectivity. The patented 11° tilt design provides optimised airflow and heat dissipation to create an innovative solution that maximises thermal performance with demanding hardware – such as an ATX power supply or a 3-slot graphics card without a riser cable.

For fans of water cooling, the ASUS Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.

Features

  • Premium aesthetics: 4 mm tempered glass panels with aluminum frame and integrated Aura Sync lighting create a sleek and stylish appearance
  • Patented 11° tilt design & optimised airflow
  • Supports one ATX PSU, 3-slot graphics card without a riser cable, 240 mm radiator, water-cooling pump and reservoir, and up to five fans
  • Built-in extension hub and advanced front panel I/O ports
  • Easy cable management and case maintenance
  • Dual orientation: Provides the flexibility to choose orientation based on workspace availability, preferences, and component display

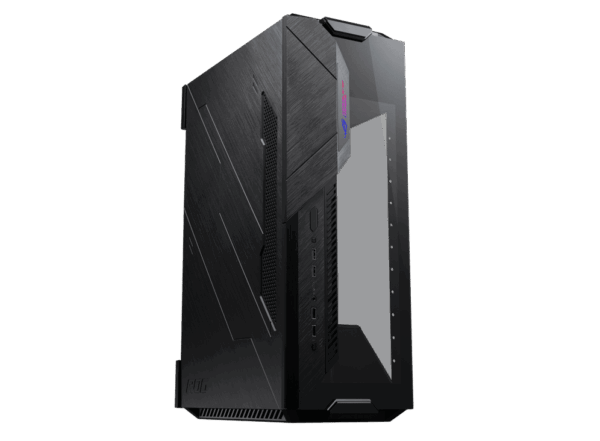

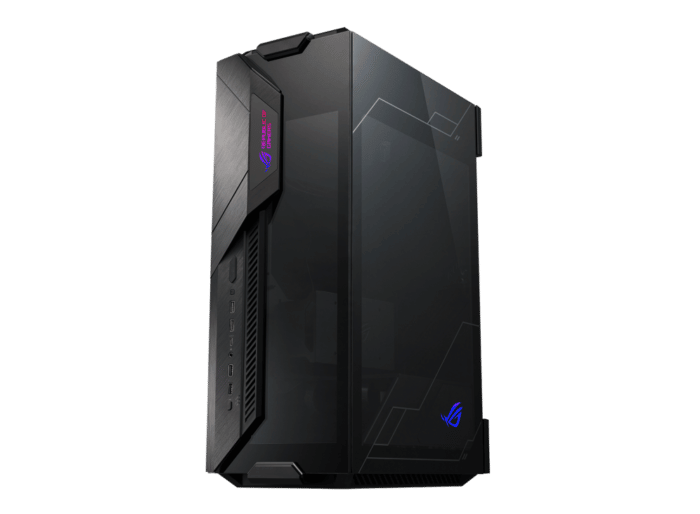

Asus ROG Z11 RGB Angled Vertical View

About the Asus ROG Z11 RGB PC Case

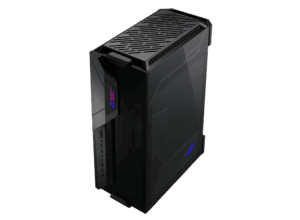

Asus ROG Z11 RGB Angled Vertical View

Patented 11° Tilt Design

Optimised airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ASUS ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.

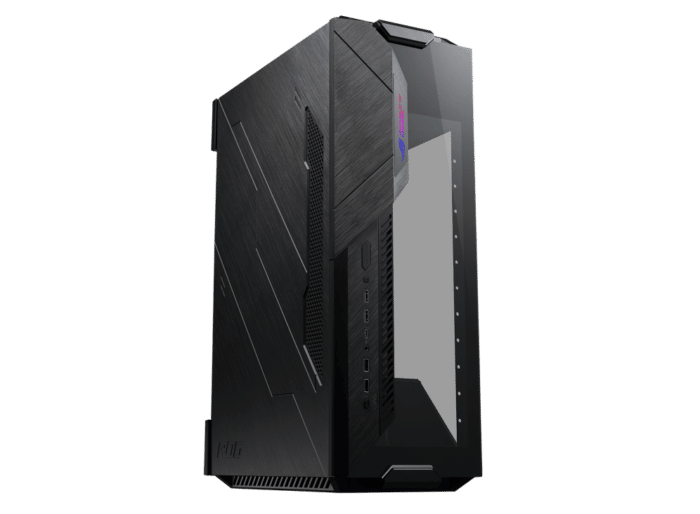

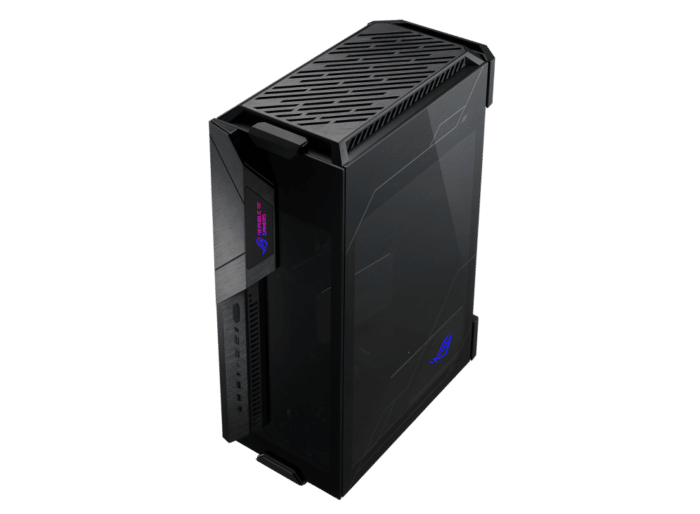

Asus ROG Z11 RGB Angled Vertical View

Optimal Airflow

The ASUS ROG Z11 is built for optimised cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximise airflow and have the flexibility to customise.

Asus ROG Z11 RGB Cover View

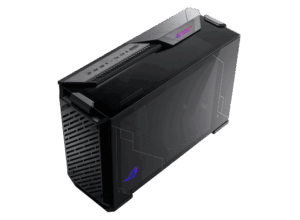

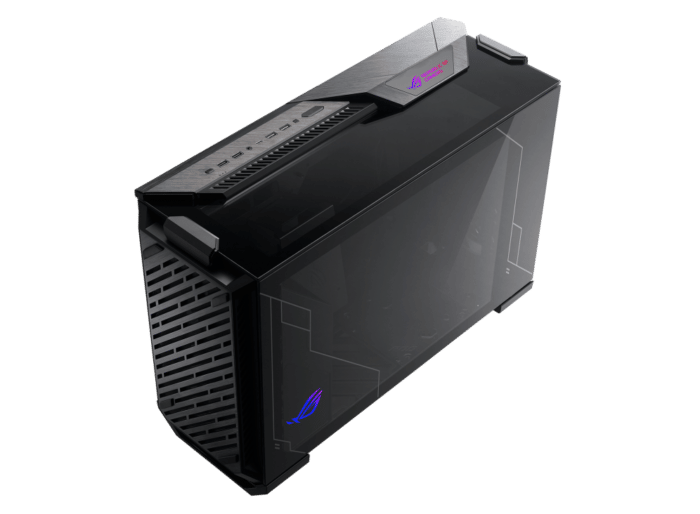

Asus ROG Z11 RGB Angled Horizontal View

Dual Orientation

The ASUS ROG Z11 can be placed in either the vertical or horizontal position, allowing users to make any build their own. On top of providing the flexibility to orient the case according to workspace availability and preferences, Z11 also empowers users to choose the orientation that is optimal for the components in their build. Angled and regular power cords are also included in the accessory box to conveniently complement each position.

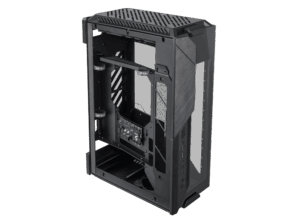

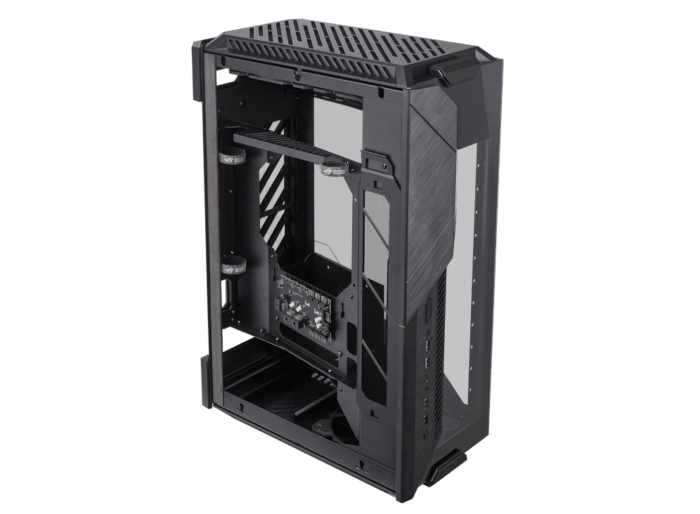

Asus ROG Z11 RGB Angled Side View

Custom Liquid Cooling

ROG Z11 offers an expansive setup for liquid cooling. The case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customise their liquid-cooling loop solution.

Asus ROG Z11 RGB Cover View

Extensive Connectivity

A built-in extension hub enables builders to connect up to six PWM fans and three addressable RGB fans or LED strips, and offers an extra USB 2.0 port to make assembly easier. Plenty of I/O ports and an ARGB lighting control button on the front panel make connecting components and devices a breeze.

Removable Dust Filters

Removable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.

Specification

Specification

Warranty 2 Years
Dimensions 194 x 386 x 531 mm
Weight 8.73 kg
CPU Cooler Maximum Height 130 mm
RGB Fans N/A
Graphics Card Maximum Length 320 mm
Power Supply Unit Maximum Length 160 mm (ATX or SFX)
Supported Cooling Systems Air cooling, Water cooling
Built-in Cooling None
Fan Mounts Bottom: 1 x 120 / 140 mm, Rear: 2 x 120mm, Top: 2 x 120 / 140 mm
Radiator Mounts Bottom: 120 mm radiator, Rear: 120/240 mm radiatior
Form Factor Mini ITX
Supported Motherboard Sizes Mini DTX, Mini ITX
Supported PSU Size ATX, SFX
Connectors 1 x USB 3.2 Gen2 Type C, 2 x USB 2.0, 2 x USB 3.2 Gen1
Drive Bays 4 x 2.5” SSD or 2 x 2.5" SSD & 1 x 3.5" HDD
Motherboard Expansion Slots 3 Expansion slots
RGB Case Lighting Yes
Materials Front Side Panel: Tempered Glass, Right Side Panel: Tempered Glass
Colour Black
Windowed Side Panel Yes
Height (mm) 531mm
Length (mm) 194mm
Width (mm) 386mm

Product identity

Brand ASUS
SKU CASE-ASUS-ROGZ11
Manufacturer part 90DC00B0-B39000
Barcode 4718017607834
