Fractal Design

Fractal Design Define XL R2 Titanium Grey – XL-ATX/E-ATX, Modular Design, 3 Fans, Fan Controller, ModuVent Technology, Sound Dampening Gaming PC Case

  • High density sound-dampening material for an optimal silent case
  • ModuVent design allows you to choose between optimal silence or maximum airflow
  • Powerful internal layout and additional PCI expansion slots, fitting the enthusiast system
  • Capacity for 9 PCI cards and two HDD cages that can be repositioned
  • Easily fits water cooling equipment in the front, top, rear and bottom without major modifications
  • Three-speed fan controller is strategically integrated in the front panel
  • Three Silent Series R2 fans are included

Order Now

£163.99

or 4 interest-free payments of £41.00 with Clearpay

Next working day delivery

In stock

Brand Fractal Design SKU CASE-FRAC-DEFXLR2TG Manufacturer part FD-CA-DEF-XL-R2-TI EAN 7350041081067

Spread the Cost

4 × £41.00 Four interest-free instalments with Clearpay
How Clearpay works

Earn Loyalty Points

911 points worth £45.55 towards your next order
How loyalty points work

Product Description

The Fractal Design Define XL R2, which includes innovative ModuVent feature, has an updated internal layout that offers even greater modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide even more space for water cooling radiators.

This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

Features

  • High density sound-dampening material for an optimal silent case
  • ModuVent design allows you to choose between optimal silence or maximum airflow
  • Powerful internal layout and additional PCI expansion slots, fitting the enthusiast system
  • Capacity for 9 PCI cards and two HDD cages that can be repositioned
  • Easily fits water cooling equipment in the front, top, rear and bottom without major modifications
  • Three-speed fan controller is strategically integrated in the front panel
  • Three Silent Series R2 fans are included

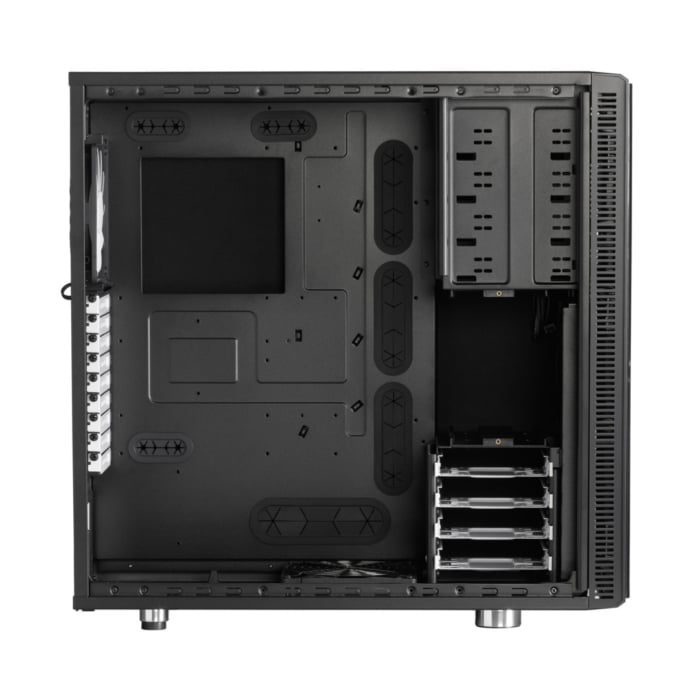

Fractal Design Define XL R2 Titanium Grey Side View

About the Fractal Design Define XL R2 Titanium Grey PC Case

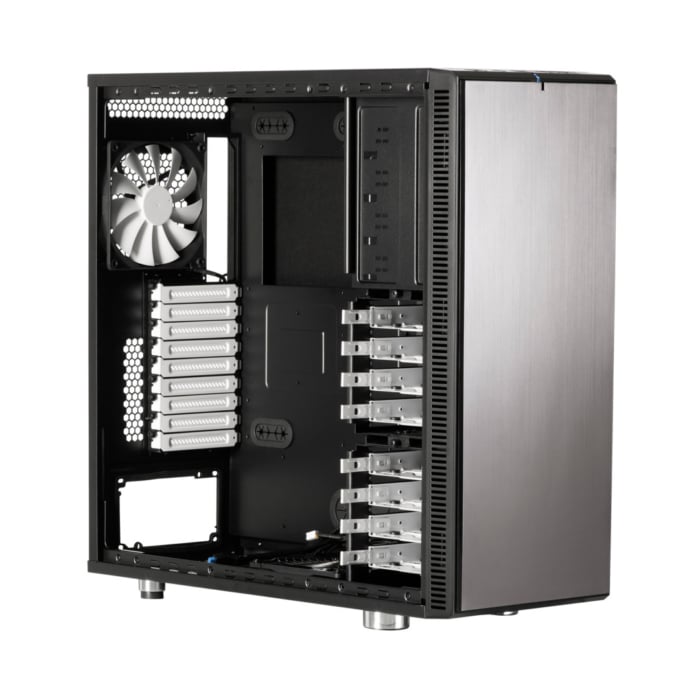

Fractal Design Define XL R2 Titanium Grey Angled Side View

Cooling

Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans. Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy. New tool-less front fan holder makes switching front fans a breeze.

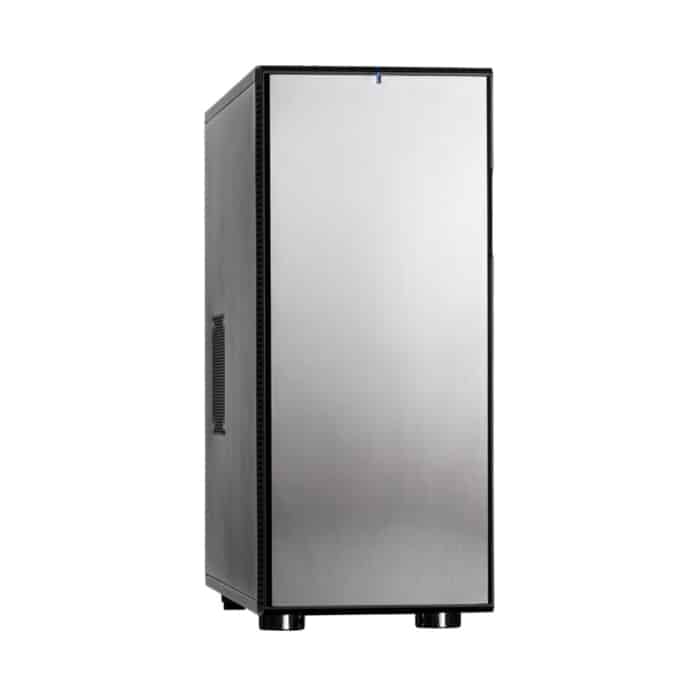

Fractal Design Define XL R2 Titanium Grey Front View

Bigger and better

With a new internal layout and additional PCI expansion slots, the Fractal Design Define XL R2 can harbor the most powerful enthusiast systems. Both HDD cages can be removed or repositioned for increased airflow or allowing a front radiator mount.

Specification

Specification

Warranty 2 Years
Dimensions 232 x 559 x 560 mm
Weight 16.4 kg
CPU Cooler Maximum Height 170 mm (when no fan is installed in the side panel)
RGB Fans No
Graphics Card Maximum Length 330 mm with the top HDD cage installed, 480 mm with the top cage removed
Power Supply Unit Maximum Length 190 mm when using the bottom fan location, 345 mm when not using this fan location
Supported Cooling Systems Air cooling, Water cooling
Built-in Cooling Bottom: 1 x Hydraulic 140 mm Silent Series R2 fan, Front: 1 x Hydraulic 140 mm Silent Series R2 fan, Rear: 1 x Hydraulic 140 mm Silent Series R2 fan
Fan Mounts Bottom: 1 x 120 / 140 mm, Front: 2 x 120 / 140 mm, Rear: 1 x 120 / 140 mm, Side: 1 x 120 / 140 mm, Top: 2 x 120 / 140 mm
Radiator Mounts Bottom: 120 mm radiator, Front: 240 mm when HDD cages are removed or repositioned, Rear: 120/140 mm radiator, Top: 240 mm or 280 mm when using slim radiators
Form Factor XL-ATX
Supported Motherboard Sizes ATX, E-ATX, Micro ATX, Mini ITX, XL-ATX
Supported PSU Size ATX
Connectors 2 x USB 2.0, 2 x USB 3.0, Audio in/out, Fan controller (behind door), Power button with LED (blue), Reset button
Drive Bays 4 x 5.25" bays, 8 x 3.5" HDD / SSD trays
Motherboard Expansion Slots 9 Expansion slots
RGB Case Lighting No
Materials Left side panel: Industrial sound-damped steel, Right side panel: Industrial sound-damped steel
Colour Grey
Windowed Side Panel No
Height (mm) 560mm
Length (mm) 232mm
Width (mm) 559mm

Product identity

Brand Fractal Design
SKU CASE-FRAC-DEFXLR2TG
Manufacturer part FD-CA-DEF-XL-R2-TI
Barcode 7350041081067
