Fractal Design Define 7 XL Dark TG – E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C Dark Tint Glass Window Gaming PC Case

  • Spacious, extensively adaptable dual-layout interior
  • Accommodates large motherboards up to E-ATX and SSI-EEB
  • Accommodates radiators up to 480 mm in front or top and 280 mm in the base
  • Two 5.25” ODD bays can be converted to an additional front fan mount
  • Three preinstalled Dynamic X2 GP-14 fans
  • Superlative storage possibilities

Order Now

Original price was: £205.99.Current price is: £175.09.

or 4 interest-free payments of £43.77 with Clearpay

Next working day delivery

In stock

Brand Fractal Design SKU CASE-FRAC-DEF7XLBLKDTG Manufacturer part FD-C-DEF7X-03 EAN 7340172702061

Spread the Cost

4 × £43.77 Four interest-free instalments with Clearpay
How Clearpay works

Earn Loyalty Points

911 points worth £45.55 towards your next order
How loyalty points work

Product Description

The Fractal Design Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

Featuring anodised aluminium front panel with reversible dual-handed hinges and a new chassis design that opens up to fully expose the case interior. Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout.

Features

  • Spacious, extensively adaptable dual-layout interior
  • Accommodates large motherboards up to E-ATX and SSI-EEB
  • Accommodates radiators up to 480 mm in front or top and 280 mm in the base
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Ventilated PSU shroud with two-part removable cover
  • Three preinstalled Dynamic X2 GP-14 fans
  • Superlative storage possibilities
  • Exceptionally silent
  • Versatile new Multibracket

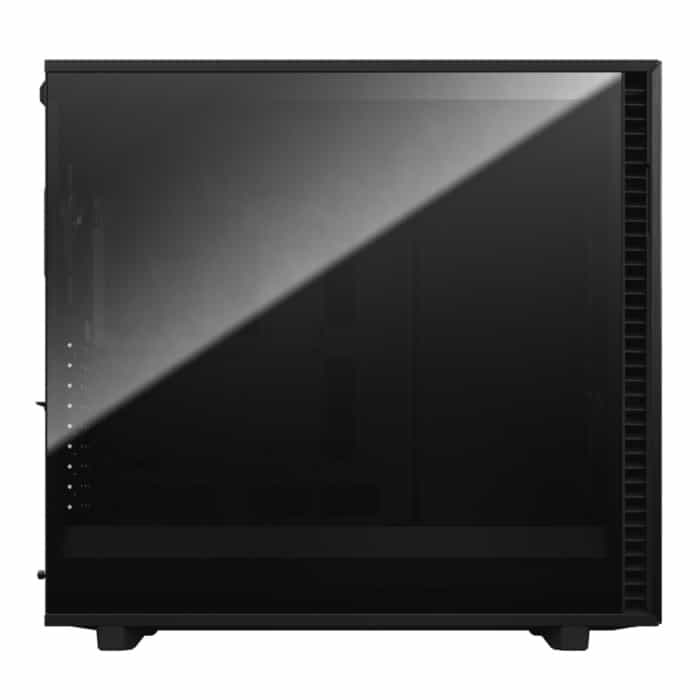

Fractal Design Define 7 XL Dark TG Side View

About the Fractal Design Define 7 XL Dark TG PC Case

Fractal Design Define 7 XL Dark TG Interchangeable View

Re-defining capacity

  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Ventilated PSU shroud with two-part removable cover
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Fractal Design Define 7 XL Black Solid Angled Side View

Superlative storage possibilities

  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
  • Sturdy new HDD cage design with vibration damped trays
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Fractal Design Define 7 XL Black Solid Cover

Fractal Design Define 7 XL Black Solid Back View

Airflow and cooling

  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Fractal Design Define 7 XL features easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
Fractal Design Define 7 XL Dark TG Side View

Versatile new Multibracket

The Fractal Design Define 7 XL’s included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.

Fractal Design Define 7 XL Black Solid Cover View

Exceptionally silent

Silence-optimised construction with industrial sound-damped front, top, and side panels.

USB Type-C

USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.

SSI-EEB

Easily holds your SSI-EEB motherboard.

Moduvent

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.

Specification

Specification

Warranty 2 Years
Dimensions 604 x 240 x 566 mm
Weight 16.64 kg
CPU Cooler Maximum Height 185 mm
RGB Fans No
Graphics Card Maximum Length Open layout: 549 mm (524 mm w/ front fan), Storage layout: 359 mm
Power Supply Unit Maximum Length 250 mm (both HDD cages installed)
Supported Cooling Systems Air cooling, Water cooling
Built-in Cooling Front: 2 x Dynamic X2 GP-14 140mm fans, Rear: 1 x Dynamic X2 GP-14 140mm fan
Fan Mounts Bottom: 2 x 120 / 140 mm, Front: 4 x 120 / 3 x 140 mm, Rear: 1 x 120 / 140 mm, Top: 4 x 120 / 3 x 140 mm
Radiator Mounts Bottom: Up to 240 / 280 mm radiator, Front: Up to 480 / 420 mm radiator, Rear: 120 mm radiator, Top: Up to 480 / 420 mm radiator
Form Factor E-ATX
Supported Motherboard Sizes ATX, E-ATX, EE-ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB
Supported PSU Size ATX
Connectors 1 x USB 3.1 Gen 2 Type-C, 2 x USB 2.0, 2 x USB 3.0, Audio in/out, Power button, Reset button
Drive Bays 2 x 2.5" - 5 positions total, 2 x 5.25", 6 + 2 x 3.5"/2.5" - 18 positions total
Motherboard Expansion Slots 9 + 3 Expansion slots
RGB Case Lighting No
Materials Left side panel: Tempered glass, Right side panel: Industrial sound-damped steel
Colour Black
Windowed Side Panel Yes
Height (mm) 566mm
Length (mm) 604mm
Width (mm) 240mm

Product identity

Brand Fractal Design
SKU CASE-FRAC-DEF7XLBLKDTG
Manufacturer part FD-C-DEF7X-03
Barcode 7340172702061
